- Rated pressure: Up to 28 MPa (intermittent up to 31 MPa)
- Low-noise, high-efficiency, and durable design
- Speed range: 600–1800 min⁻¹
- Control options: Pressure compensator, torque limiter, load sensing, remote pressure, electric control
- Rotation: Right (R) or Left (L)
- Compatible with water glycol fluids
- Lead times for non-stocked items are generally 21-23 weeks. For urgent needs, please contact us to explore additional options.

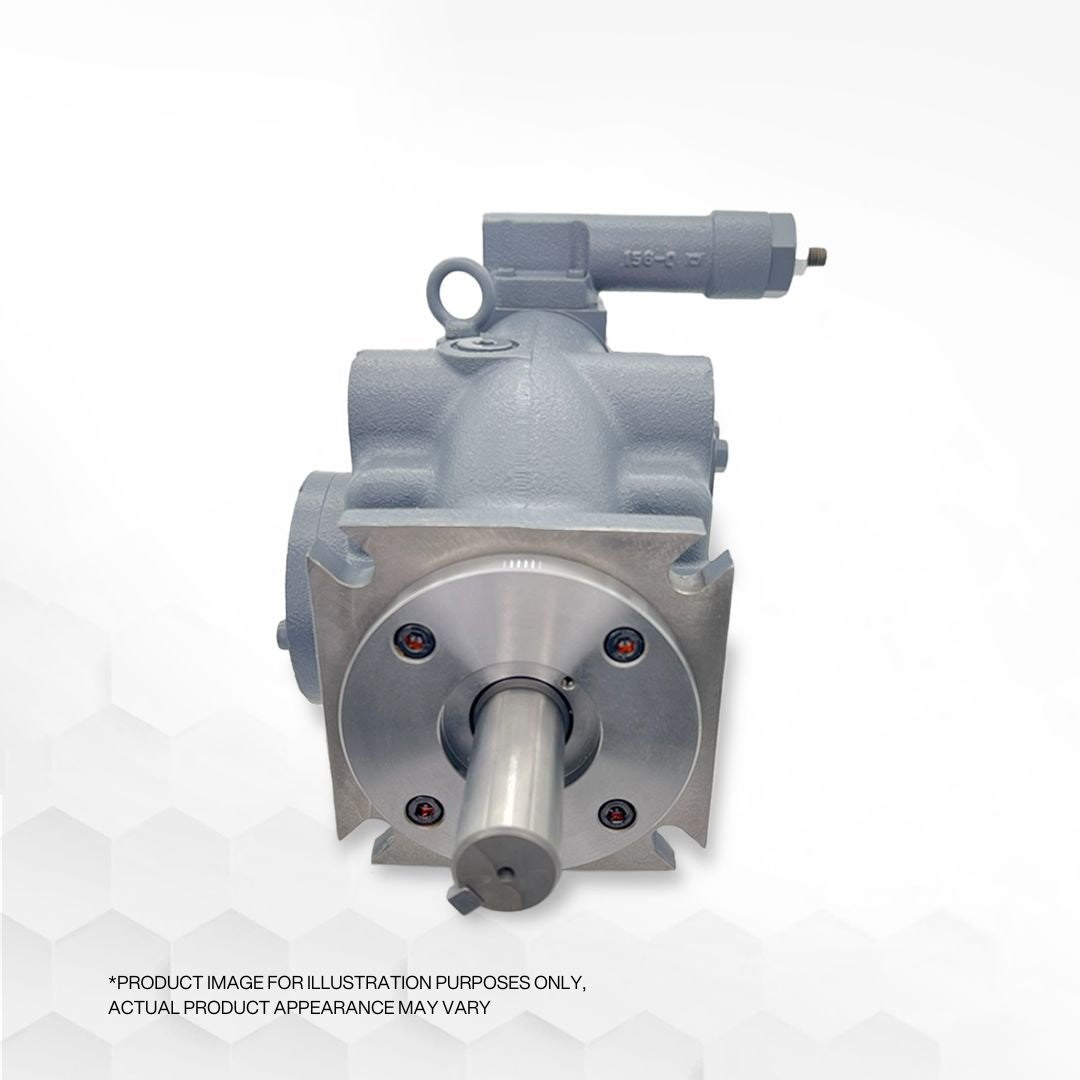

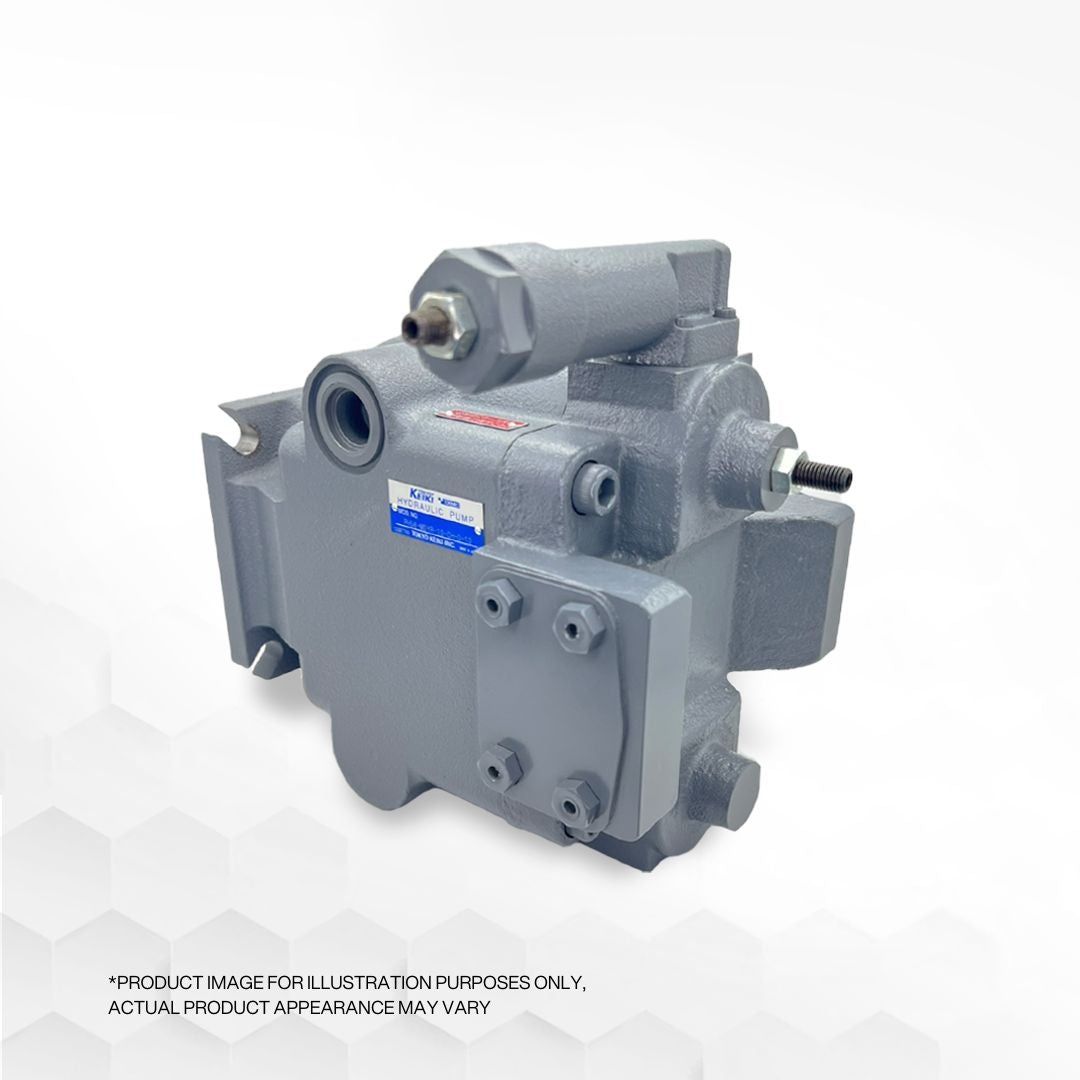

Introducing the Tokyo Keiki PH Series Variable Displacement Piston Pump is a line of high-performance, low-noise, variable displacement piston pumps designed for industrial hydraulic systems demanding reliability, precision, and efficiency. Engineered for reduced noise levels and extended durability, the PH Series supports various control options and pump configurations, making it ideal for modern hydraulic applications across manufacturing, machinery, and automation industries.
With models including PH80, PH100, PH130, and PH170, the PH Series offers flexible design choices such as electric direct control, torque limiters, and remote pressure compensation. These pumps ensure smooth performance even under intermittent high-pressure conditions and are compatible with water glycol when required.
Specifications:
- Models: PH80, PH100, PH130, PH170
- Type: Variable displacement axial piston pump
- Low-noise design for industrial environments
-
Displacement (cm³/rev):
o PH80: 80 cm³/rev
o PH100: 100 cm³/rev
o PH130: 130 cm³/rev
o PH170: 170 cm³/rev -
Rated Working Pressure:
o PH80 & PH100: 28 MPa (intermittent 31 MPa)
o PH130 & PH170: 21 MPa (intermittent 22.5 MPa) -
Speed Range:
o Max: 1800 min⁻¹
o Min: 600 min⁻¹ -
Weight:
o PH80: 51 kg
o PH100: 70 kg
o PH130: 70 kg
o PH170: 95 kg - Control Options: Pressure compensator (CH), torque limiter (TL/TH), load sensing (CVH), remote pressure (CGH), electric direct control (EDHS)
- Rotation: Right (R) or Left (L)
Optimize your hydraulic system with Tokyo Keiki PH Series Variable Displacement Piston Pump—precision, performance, and power in one robust package. Backed by proven engineering and flexible configuration options, these pumps deliver dependable operation under demanding conditions. Trust Tokyo Keiki to elevate your system's efficiency and extend its operational life. #PistonPump #TokyoKeiki #CascadeIndustrial
Lead times for non-stocked items are generally 21-23 weeks. For urgent needs, please contact us to explore additional options.
