- Versatile fluid compatibility: Choose Mineral Oil or (F3) Phosphate Ester.
- Secure gasket-mounted installation for stability.
- Flexible drain options: External or Internal.
- Precise pressure control with three ranges.
- Tailored pilot configurations: Standard or S9.
- Variable vent pressure: Standard or High.
- Efficient cut-in pressures: 85% or 95%.
- Easy installation with 3/4-10UNC or M20 bolts.

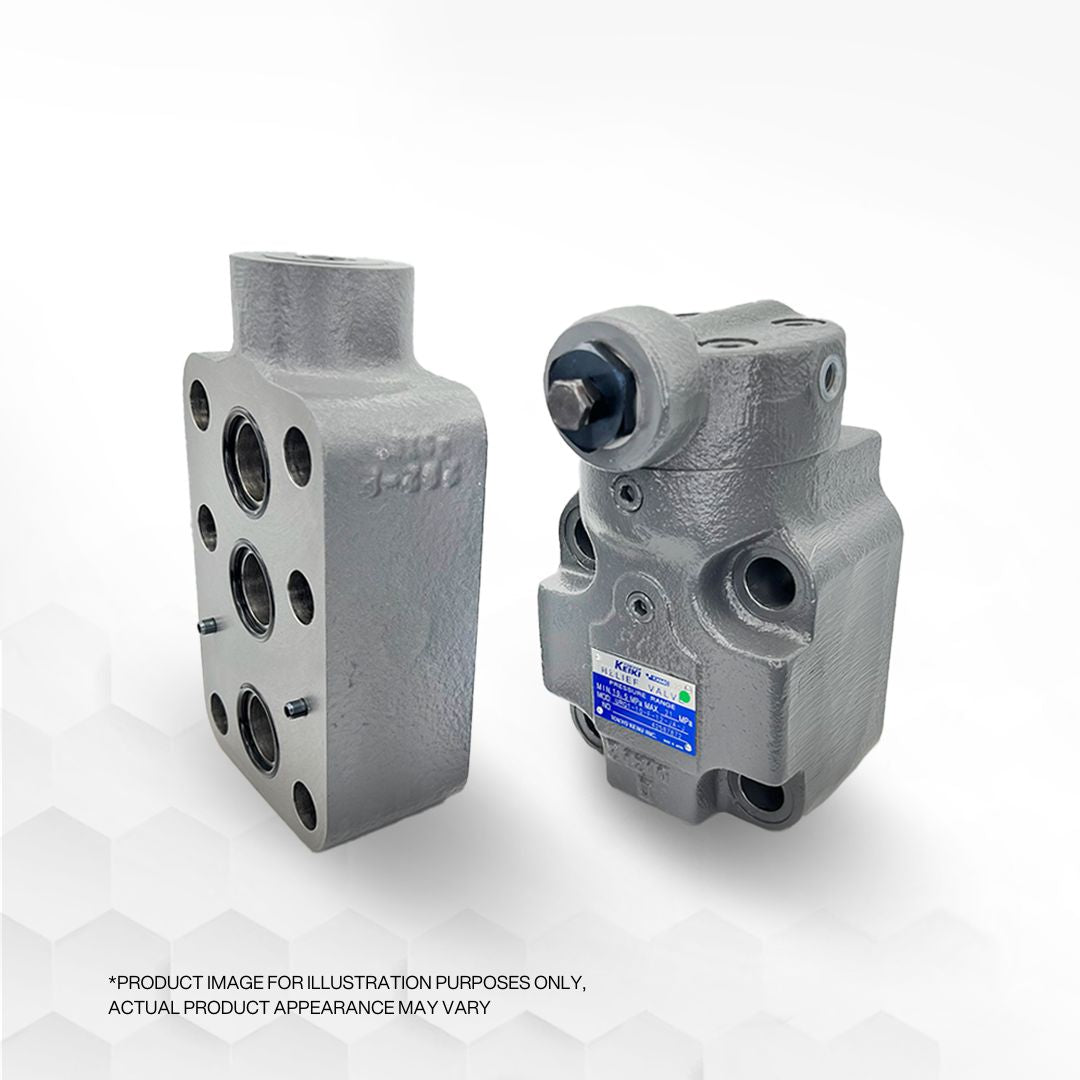

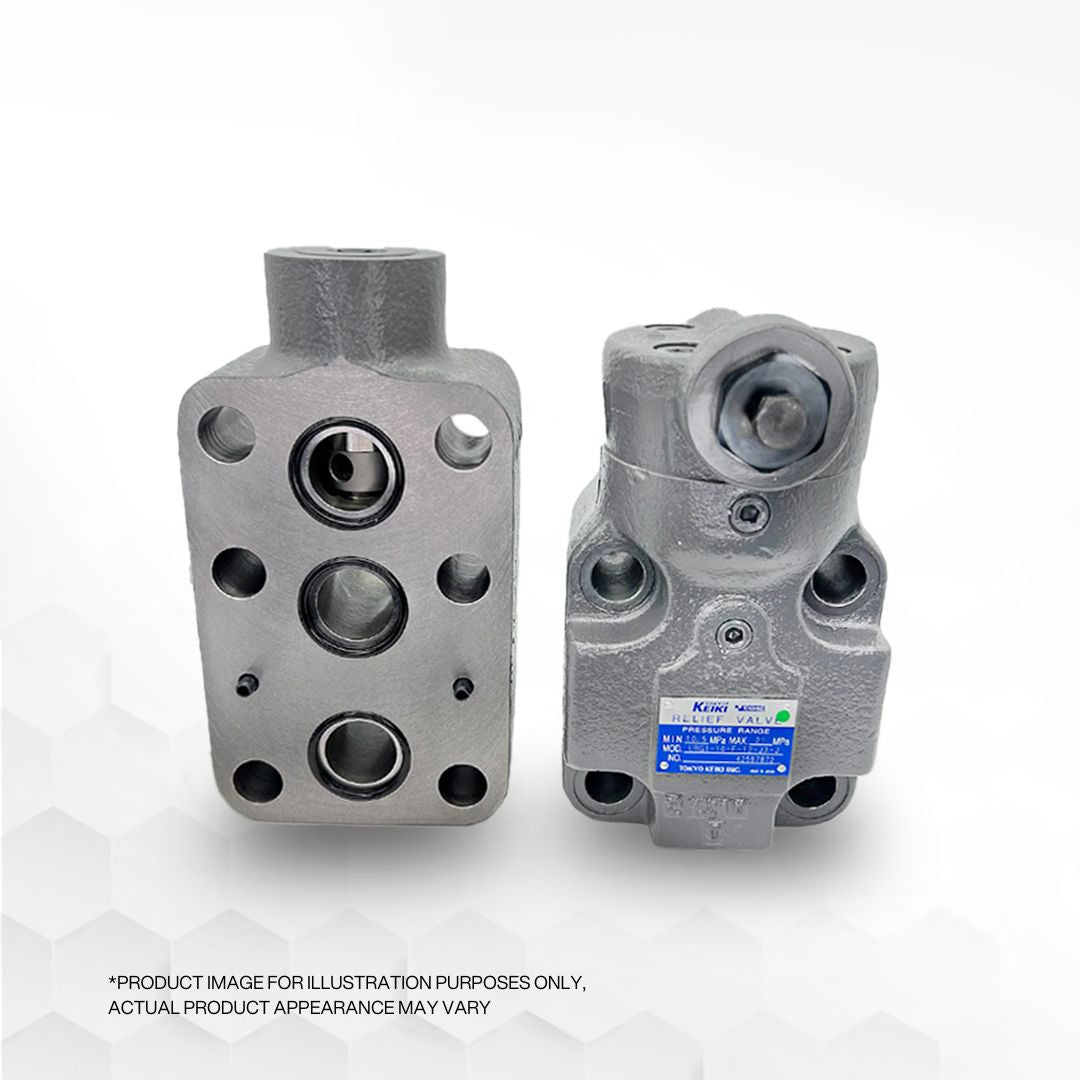

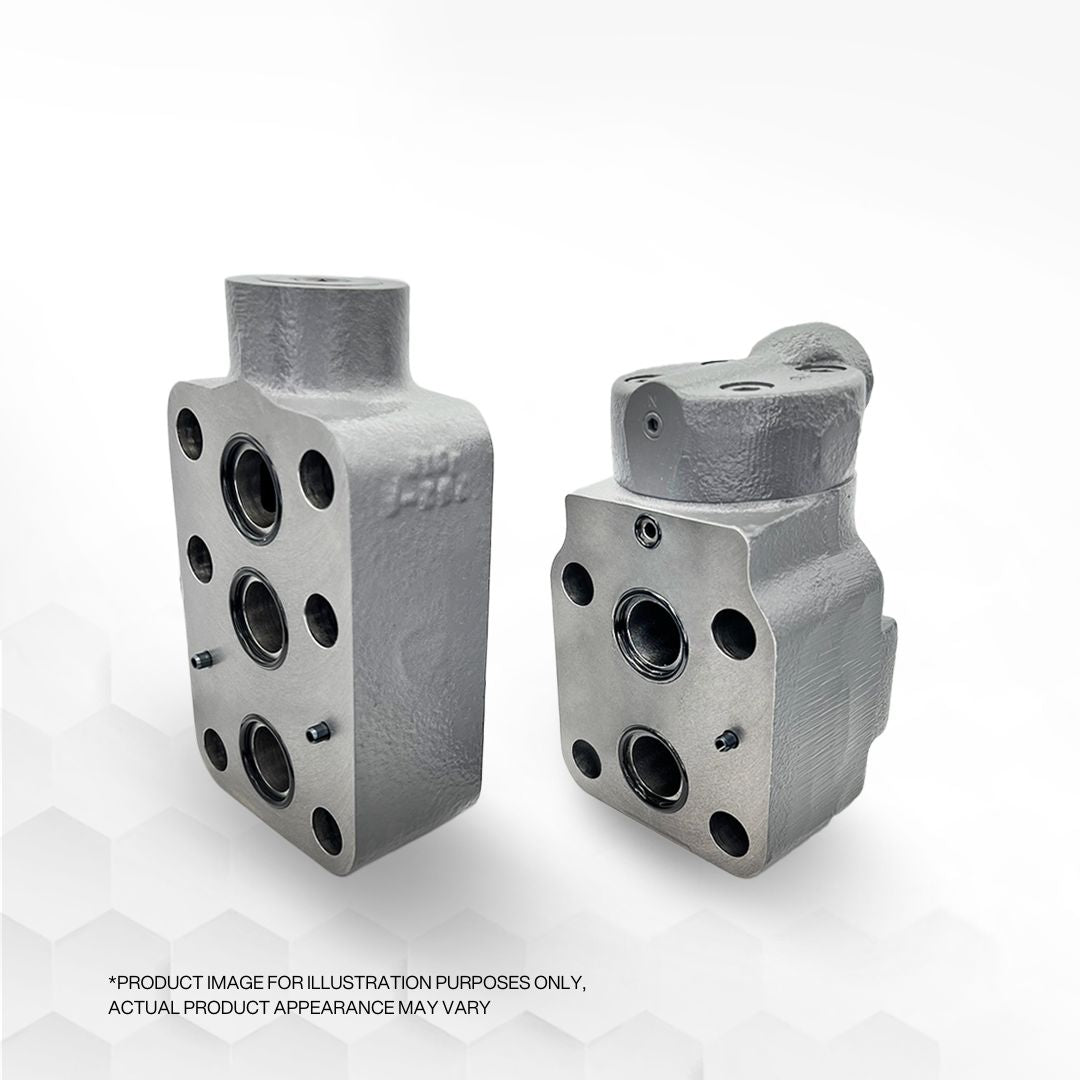

Introducing Tokyo Keiki’s URG Series Unloading Relief Valve, meticulously designed to meet diverse Industrial needs.
Features:
- Fluid type choices include Mineral Oil (standard) or Phosphate Ester (F3)
- Gasket mounted.
- Drain:
- 1: External drain
- 2: Internal drain
- Pressure Adjustment Range:
- B – 2.5 ∼ 7MPa
- C – 3.5 ∼ 14MPa
- F – 10.5 ∼ 21MPa
- Pilot: Standard (Internal Pilot) or S9 (External)
- Vent Pressure: Standard (low) or High (V)
- Cut-in Pressure: (Standard) 85% of setting Pressure or (S1) 95% of setting pressure.
- Mounting bolts (J)– 3/4-10UNC or (M)– M20
Benefits:
- Automatically unloads pump when circuit pressure reaches setting pressure.
- Protects pumps from overload.
- Extends pump life.
- Improves system efficiency.
- Reduces maintenance costs.
Buy Tokyo Keiki's URG Series Unloading Relief Valve today and experience the benefits of reliable, efficient, and long-lasting performance. #TokyoKeiki #URGSeries #ReliefValve
