RG-10-D4-22-JA-J | Direct Pressure Contol Valve

Introducing Tokyo Keiki's RG Series Direct Pressure Control Valve The versatile solution for precise pressure control in hydraulic systems. Designed to adapt to various applications, this valve offers exceptional functionality and performance.

Features:

• Hydraulic fluid: (Standard) – mineral oil-based fluid, water glycol-based fluid ; (F3) - Phosphate ester-based fluid
• Check valve options: (RG) No check valve or (RCG) With Check valve
• Size: 03, 06, 10
• Pressure adjustment range: (X) – 0.07 ∼21 MPa, (Y) – 0.14 ∼42 MPa, (Z) – 0.25 ∼88 MPa, (A) – 0.53 ∼75 MPa, (B) – 0.88 ∼5 MPa, (A) – 1.75 ∼ 7 MPa or
  (F) – 3.5 ∼ 14 MPa
• Auxiliary pilot port: (Standard) – No auxiliary pilot port, (P) – Auxiliary Pilot Port
• Valve function: (1) – Internal pilot, internal drain , (2) – Internal pilot, external drain (3) – External pilot, external drain (4) – External pilot, internal drain

Benefits:

• Direct acting type valve for efficient pressure adjustment
• Suitable for sequence, counterbalance, relief, and unload valve applications
• Integrated check valve enables reverse flow from secondary to primary side
• Prevents runaway loads with built-in counterbalance functionality
• Acts as a safety relief valve to maintain circuit pressure
• Unloads the circuit by releasing pressurized oil when needed
• Compatible with standard hydraulic fluid

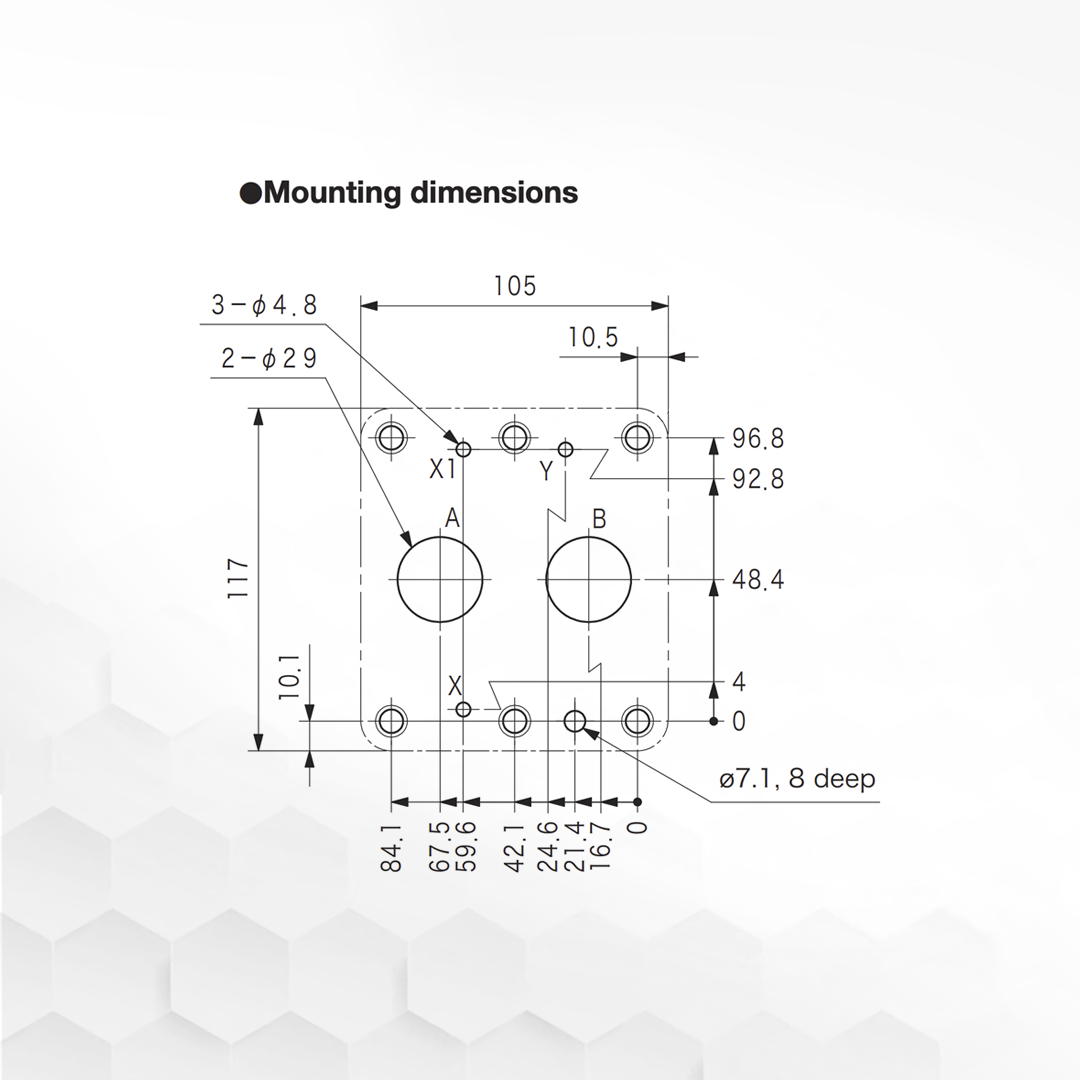

• Easy installation with gasket mounting
