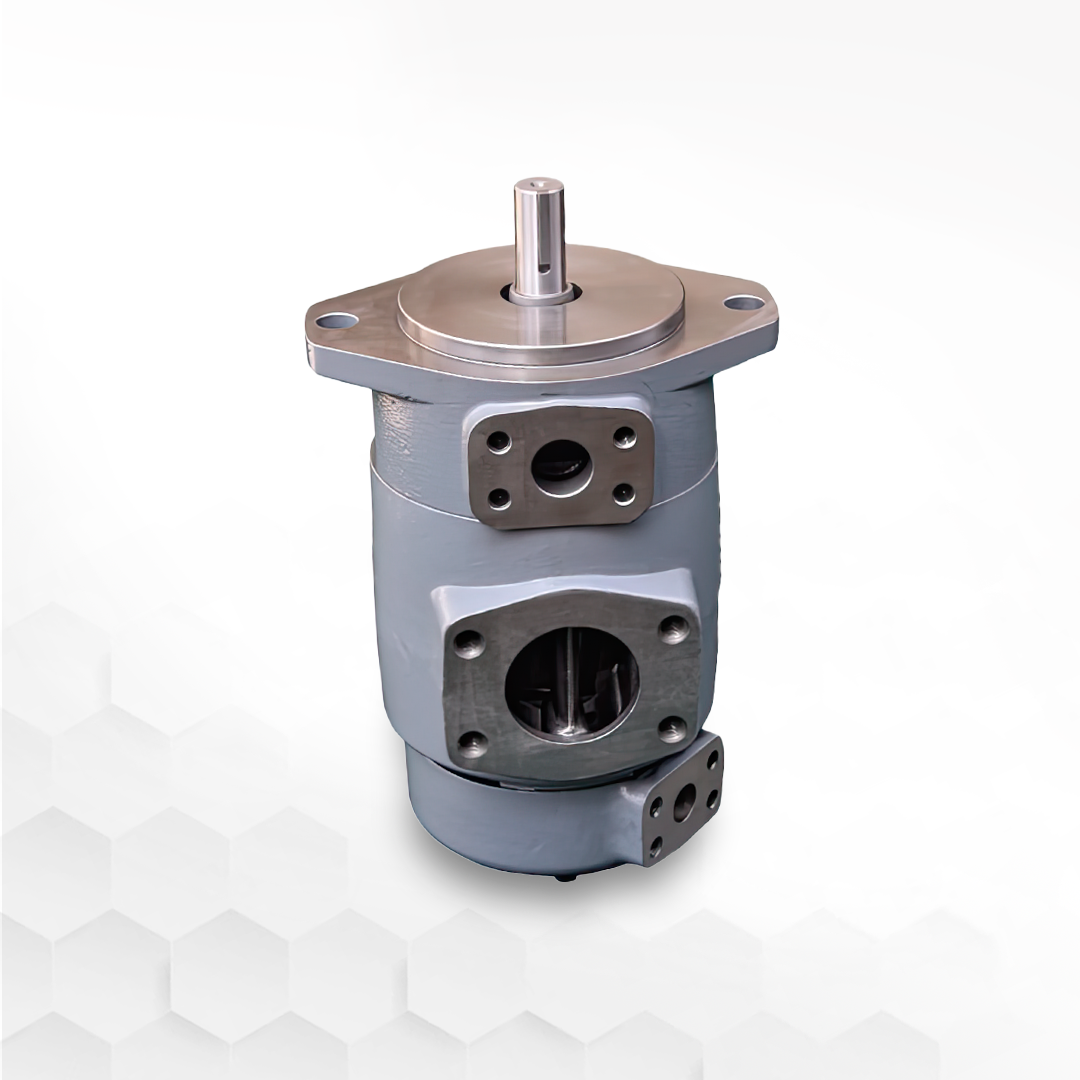

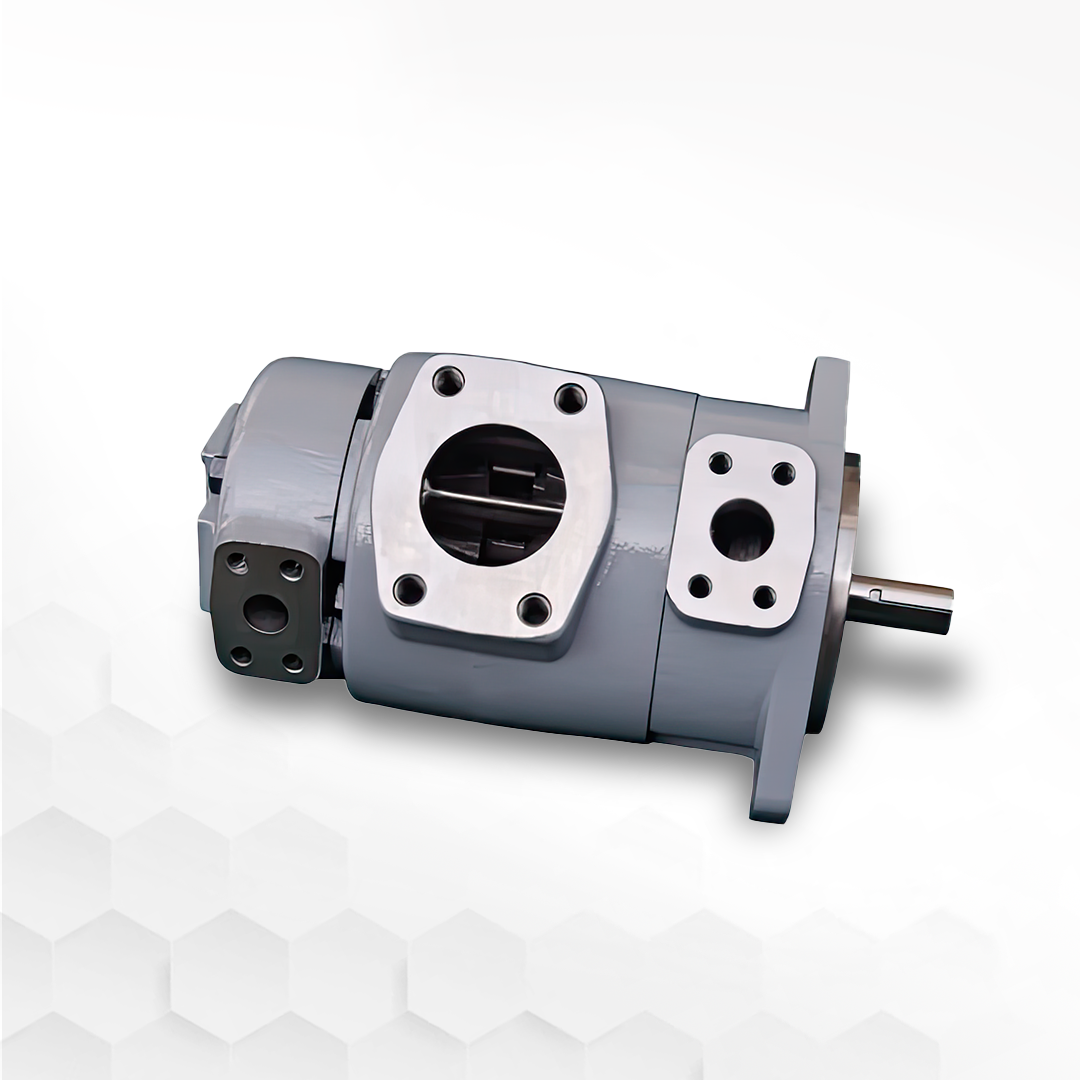

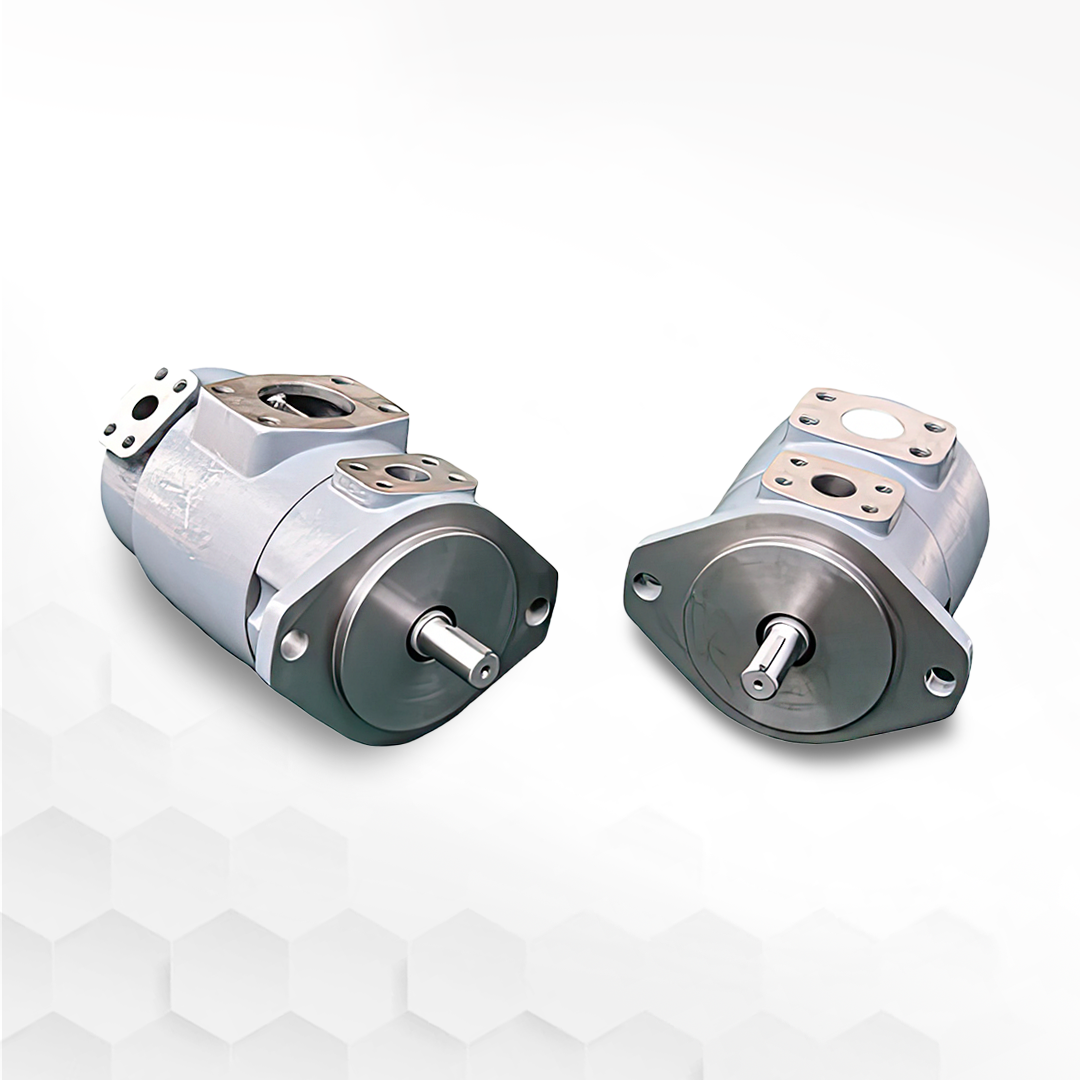

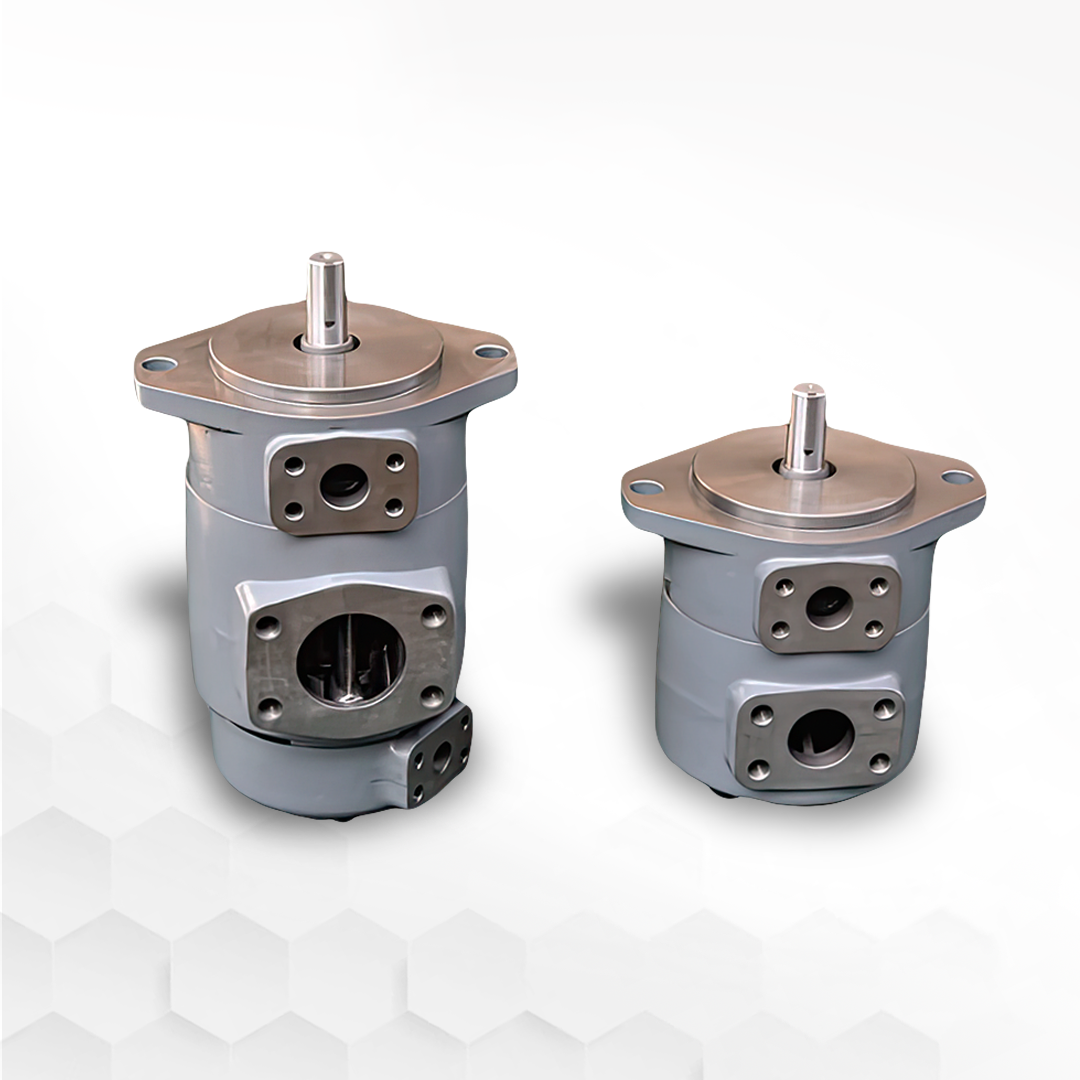

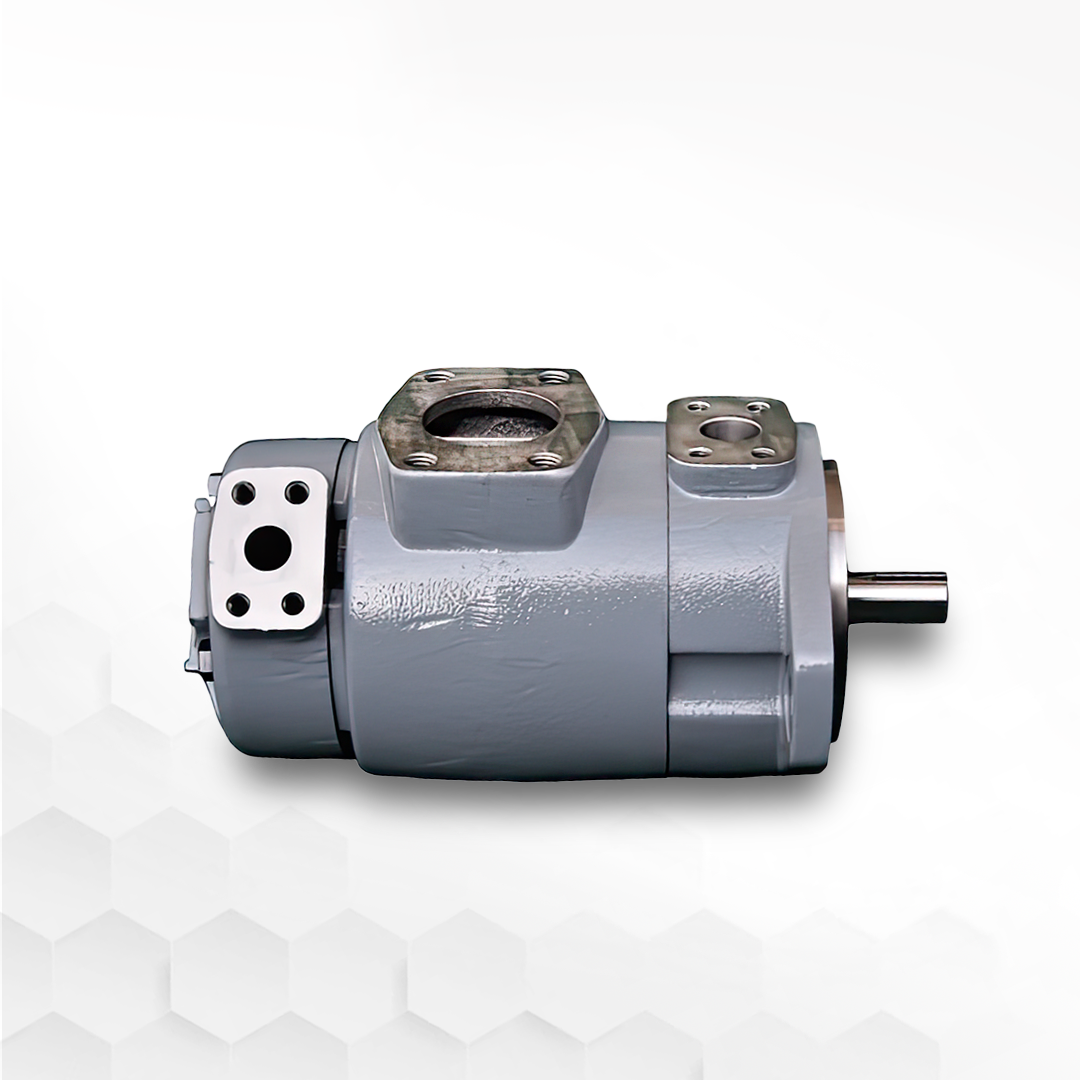

F11-SQPS31-38-11-86DD-LH-18 | Low Noise Double Fixed Displacement Vane Pump

The SQP series are low-noise vane pumps offered in single, double, or triple pumps, with 4 frame sizes, 16 series, and 31 models of different discharge displacements. The wide extent of this range allows users to select the optimum combination of discharge displacements for their circuits, leading to an energy efficient system.

• Lower noise - Offers very quiet and soft operational noise levels
• Greater flexibility - Multiple pump combinations of different displacements permits simpler circuit design compared to systems using one large displacement pump and provides greater flexibility in circuit design with low noise levels
• Maintenance friendly - Rotating element in cartridge kit form allows simple maintenance

The SQPS series incorporate special pulsation damping chambers which minimize pulsation amplitude from delivery pressure, contributing to a great reduction in overall noise levels

Note - All standard options are omitted from the product model number.

Hydraulic fluid

• Standard - Mineral oil-based fluid
• F11 - Water glycol-based fluid

Shaft end pump displacement code - 17, 21, 25, 30, 32, 35, 38

Cover end pump displacement code - 2, 3, 4, 5, 6, 7, 8, 11, 12, 14

Shaft end configuration (Parallel sq. key) - 1, 11, 86

Shaft end delivery port position (viewed from cover end)

• A - Opposite suction port
• B - 90° Counterclockwise from suction port
• C - Inline with suction port
• D - 90° Clockwise from suction port

Cover end delivery port position (viewed from cover end)

• A - 135° Counterclockwise from suction port
• B - 45° Counterclockwise from suction port
• C - 45° Clockwise from suction port
• D - 135° Clockwise from suction port

Pump mounting

• Standard - Flange mounting
• Foot mounting - Delivery port position (as viewed from shaft end)
  • 2 - Up (12 o'clock)
  • 23 - Right (3 o'clock)

Rotation (viewed from shaft end)

• Standard - Clockwise

LH - Counterclockwise
