TOKYO KEIKI

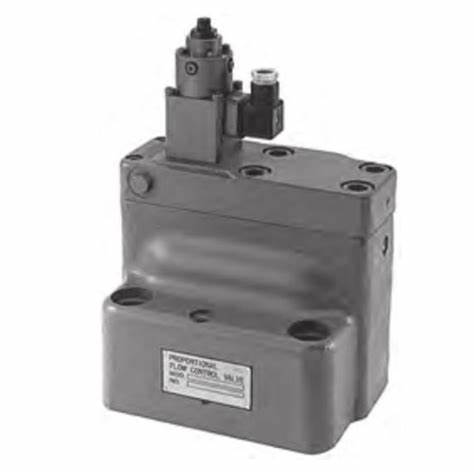

EPFRG-H02-350-F-11 - Proportional Solenoid Flow Control Valves - 48242873
Product SKU: 48242873
EPFRG-H02-350-F-11 valve is a flow control valve which utilizes a proportional solenoid actuator. A proprietary flow ...
Learn More
Download CatalogLearn More
EPFRG-H02-350-F-11 valve is a flow control valve which utilizes a proportional solenoid actuator. A proprietary flow adjustment design is incorporated to allow very precise positioning of the main spool. This flow control valve is pilot operated, and the main spool is impervious to effects of flow forces and other disturbances.
The EPFRG valve utilizes a bypass type pressure compensator with load sensing function which contributes to energy saving of hydraulic circuits.
Performance
Notes on Use
• Mounting orientation
- Valve can be mounted in any direction. However if valve is mounted on the lateral side of the manifold block, and none of the 3 air bleed plugs do not face the ceiling, rotate the proportional solenoid 90° to orient an air bleed plug to the ceiling. Current-flow characteristics may vary slightly (approx. 1.5%) according to the mounting direction.
- For stable flow control, loosen the air bleed plug and bleed air completely out of the valve prior to use.
- In case there is no input current to the solenoid during initial adjustment or electric malfunction, press the manual pin for flow control such as Inching.
- This is adjusted at factory before shipment. Readjustment is not necessary.
- Y port (drain) allowable back pressure is 0.2 MPa. Piping should be directly returned to tank. Ensure that end of the piping is always below the fluid level.
- Care should be paid when the vent line piping is long as the large volume of fluid in the pipes may cause instability (resonation). Piping should be as short as possible.
