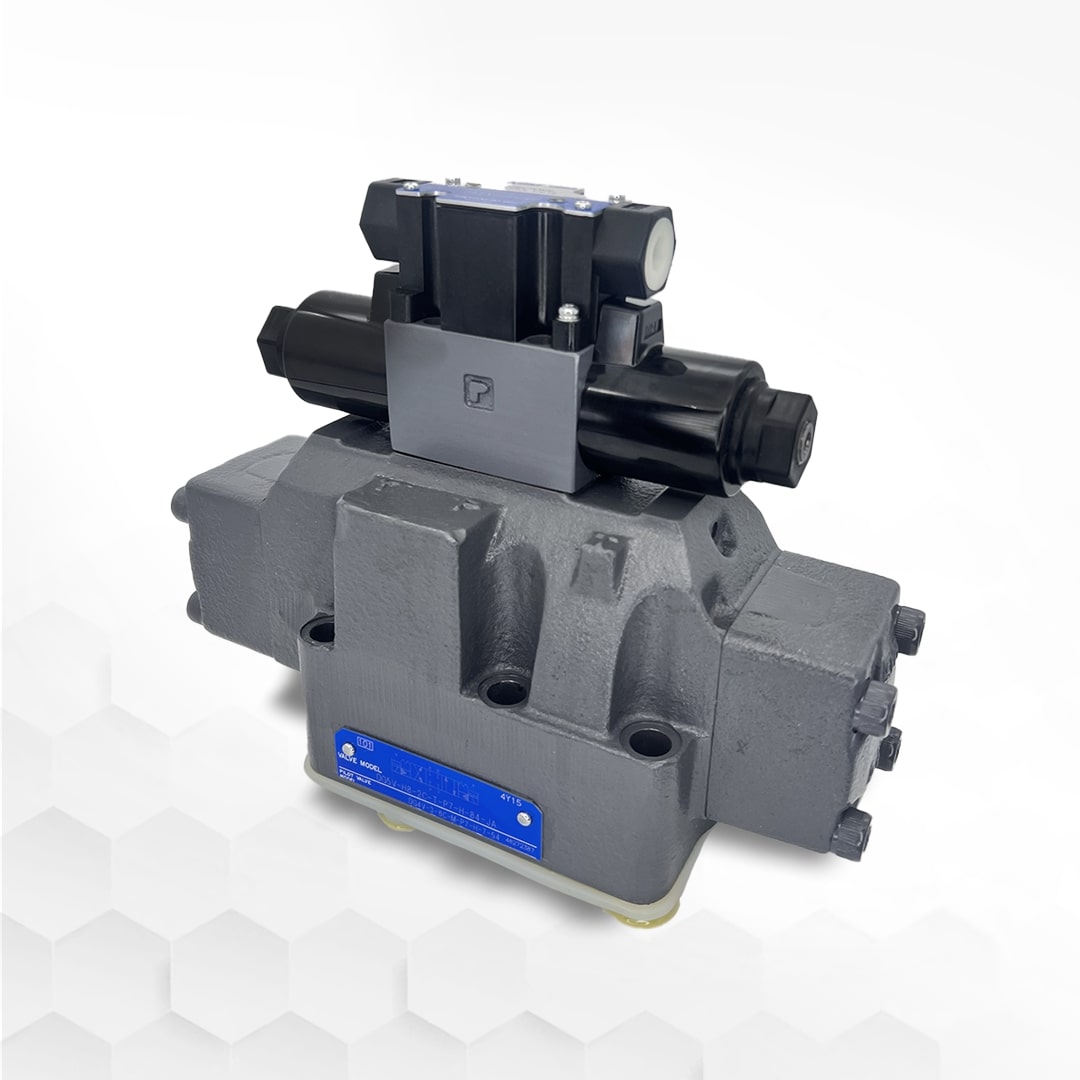

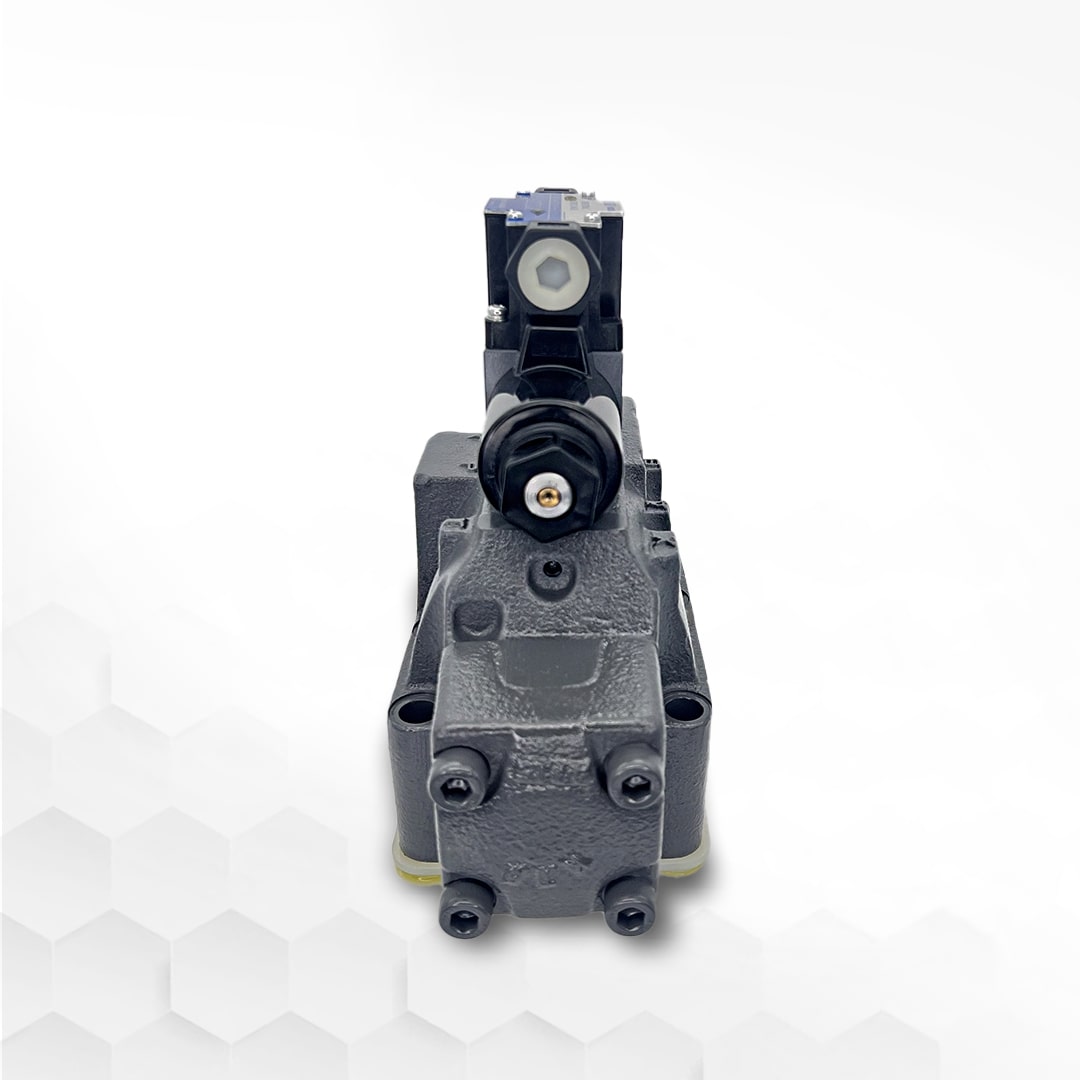

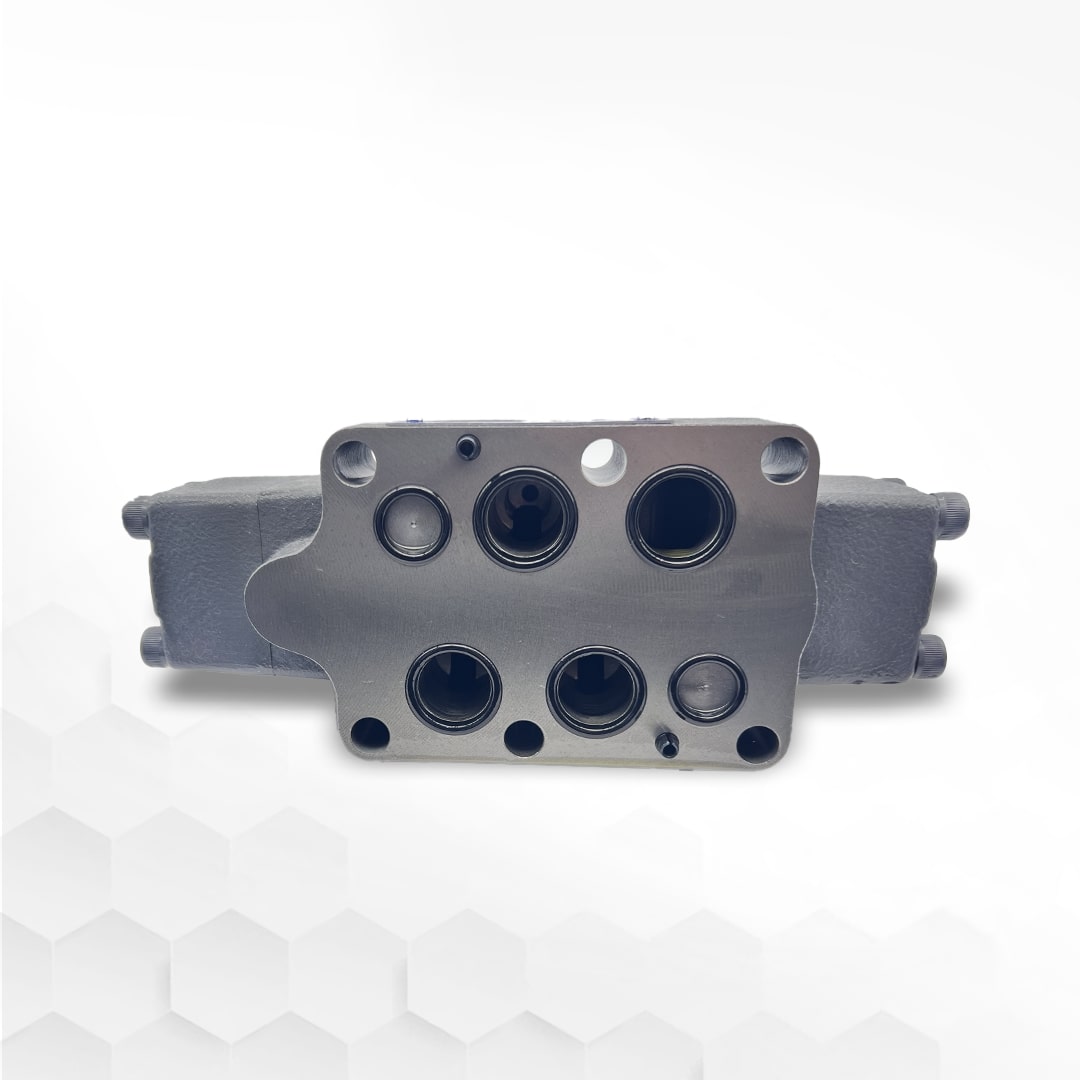

DG5V-H8-2C-P2-D-86-JA | Solenoid Controlled Pilot Operated Directional Control Valve

Upgrade your hydraulic system with the Tokyo Keiki DG5V-H8 Series – a powerhouse of precision engineering and robust performance.

Specifications:

• ISO 4401-AE-08-4-A (Size 06)
• Max Working Pressure: 31.5 MPa
• Max Flow: See Pressure-Flow Characteristics
• Allowable Tank Port Back Pressure: 20.6 MPa
• Min. Pilot Pressure: See Min Pilot Pressure Curves
• Max Pilot Pressure: 31.5 MPa
• Weight (Single Solenoid): 20.04 kg
• Weight (Double Solenoid): 20.64 kg

Key Features:

• 4-way, 3-position directional control for versatile functionality
• High flow capacity ensures optimal hydraulic performance
• Built to withstand demanding environments

Benefits:

• Precision control for enhanced system efficiency
• Robust construction guarantees longevity
• Easy integration into existing setups
• Tokyo Keiki quality ensures top-tier performance

Upgrade your system with Tokyo Keiki DG5V-H8 Series and experience unmatched power, precision, and performance. Elevate your operations with Tokyo Keiki. Order now!
