Proportional Relief Valves
30%

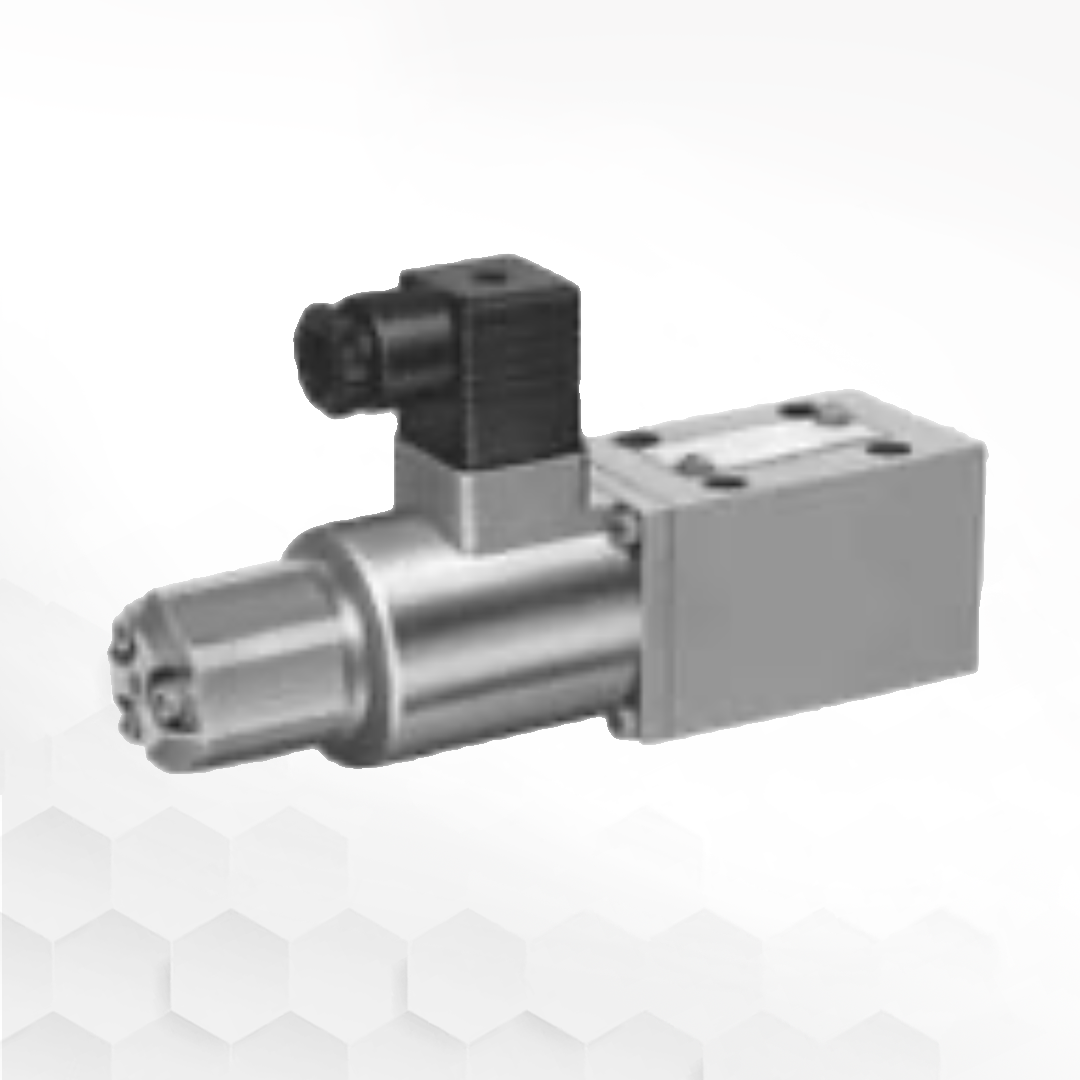

- Proportional electro-hydraulic relief valve
- Stable pressure control with low-noise operation
- Models: EBG-03 (100 L/min), EBG-06 (200 L/min), EBG-10 (400 L/min)
- Pressure range: up to 24.5 MPa (3550 PSI)
- Accuracy: Repeatability ≤1%, Hysteresis ≤3%
- Durable & compact for long service life.
- Applications: Machine tools, press equipment, energy-efficient hydraulics
- Optional safety valve & global design standards
30%
- Proportional electro-hydraulic relief valve
- Stable pressure control with low-noise operation
- Models: EBG-03 (100 L/min), EBG-06 (200 L/min), EBG-10 (400 L/min)
- Pressure range: up to 24.5 MPa (3550 PSI)
- Accuracy: Repeatability ≤1%, Hysteresis ≤3%
- Durable & compact for long service life.
- Applications: Machine tools, press equipment, energy-efficient hydraulics
- Optional safety valve & global design standards
30%
- Max. Pressure: 24.5 MPa (3550 PSI)
- Flow Range: 0.3–2 L/min
- Pressure Adj.: 0.5–24.5 MPa
- Low hysteresis (≤3%) & high repeatability (±1%)
- Coil Resistance: 10 Ω
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
30%
- Max. Pressure: 24.5 MPa (3550 PSI)
- Flow Range: 0.3–2 L/min
- Pressure Adj.: 0.5–24.5 MPa
- Low hysteresis (≤3%) & high repeatability (±1%)
- Coil Resistance: 10 Ω
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
30%
- Max. Pressure: 24.5 MPa (3550 PSI)
- Flow Range: 0.3–2 L/min
- Pressure Adj.: 0.5–24.5 MPa
- Low hysteresis (≤3%) & high repeatability (±1%)
- Coil Resistance: 10 Ω
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
30%
- Max. Pressure: 24.5 MPa (3550 PSI)
- Flow Range: 0.3–2 L/min
- Pressure Adj.: 0.5–24.5 MPa
- Low hysteresis (≤3%) & high repeatability (±1%)
- Coil Resistance: 10 Ω
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
30%
- Max. Pressure: 24.5 MPa (3550 PSI)
- Flow Range: 0.3–2 L/min
- Pressure Adj.: 0.5–24.5 MPa
- Low hysteresis (≤3%) & high repeatability (±1%)
- Coil Resistance: 10 Ω
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
30%
- Max. Pressure: 24.5 MPa (3550 PSI)
- Flow Range: 0.3–2 L/min
- Pressure Adj.: 0.5–24.5 MPa
- Low hysteresis (≤3%) & high repeatability (±1%)
- Coil Resistance: 10 Ω
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
30%
- Max. Pressure: 24.5 MPa (3550 PSI)
- Flow Range: 0.3–2 L/min
- Pressure Adj.: 0.5–24.5 MPa
- Low hysteresis (≤3%) & high repeatability (±1%)
- Coil Resistance: 10 Ω
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
30%
- Max. Pressure: 24.5 MPa (3550 PSI)
- Flow Range: 0.3–2 L/min
- Pressure Adj.: 0.5–24.5 MPa
- Low hysteresis (≤3%) & high repeatability (±1%)
- Coil Resistance: 10 Ω
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
