Products On Sale
- Pressure Control Valve.
- Flow rates: Up to 500 L/min (132 GPM).
- Max pressure: 21 MPa (3050 PSI).
- Mounting: Threaded (Rc, BSP, NPT) or sub-plate.
- Pressure adjustment range: 0.25–14 MPa (36–2030 PSI).
- Material: High-strength hydraulic-grade steel.
- Integral check valves for controlled reverse flow.
- Ideal for industrial automation, material handling, and hydraulic power units.
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please get in touch with us to explore additional options.
- Direct Operated Proportional Electro-Hydraulic Directional and Flow Control Valve
- High response with ≤ 0.1% hysteresis & repeatability.
- 14 ms (01EH), 22 ms (03EH) for stable control.
- IP65-rated, contamination-resistant, and 35 MPa pressure handling.
- Onboard electronics (OBE) and 24V DC power supply.
- Max Flow: 01EH: 10-40 L/min
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
- High Response Directional and Flow Control Valve
- Direct and pilot-operated for accurate position and pressure control.
- Powerful solenoid, LVDT feedback, and minimal hysteresis (≤ 0.5%).
- Superior Flow Control: Rated flow 10–80 L/min, rapid 23–38 ms response time.
- Durable & Efficient: Max pressure 31.5 MPa, frequency response 36–52 Hz.
- ISO 4401 mounting, compatible with YUKEN AMN-L & AMB-EL amplifiers.
- Cost-effective alternative to servo valves for industrial automation & heavy machinery.
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
- Digital Output Module.
- 16 Transistor Outputs (NX-DY1: Sink, NX-DY2: Source)
- 24V DC (21.6–26.4V DC), 100mA max per channel
- MODBUS TCP (Ethernet) & MODBUS RTU/ASCII (RS-485)
- 50ms refresh cycle, logic operations (32 groups)
- Event output (PhotoMOS relay), pulse control
- Daisy-chain connectivity, DIN rail mounting
- Vibration-resistant (0–3.2 m/s²), 0–50°C operation
- style="color: rgb(0, 0, 0);">
- Lead times for non-stocked items are generally 6-8 weeks. For urgent needs, please contact us to explore additional options.

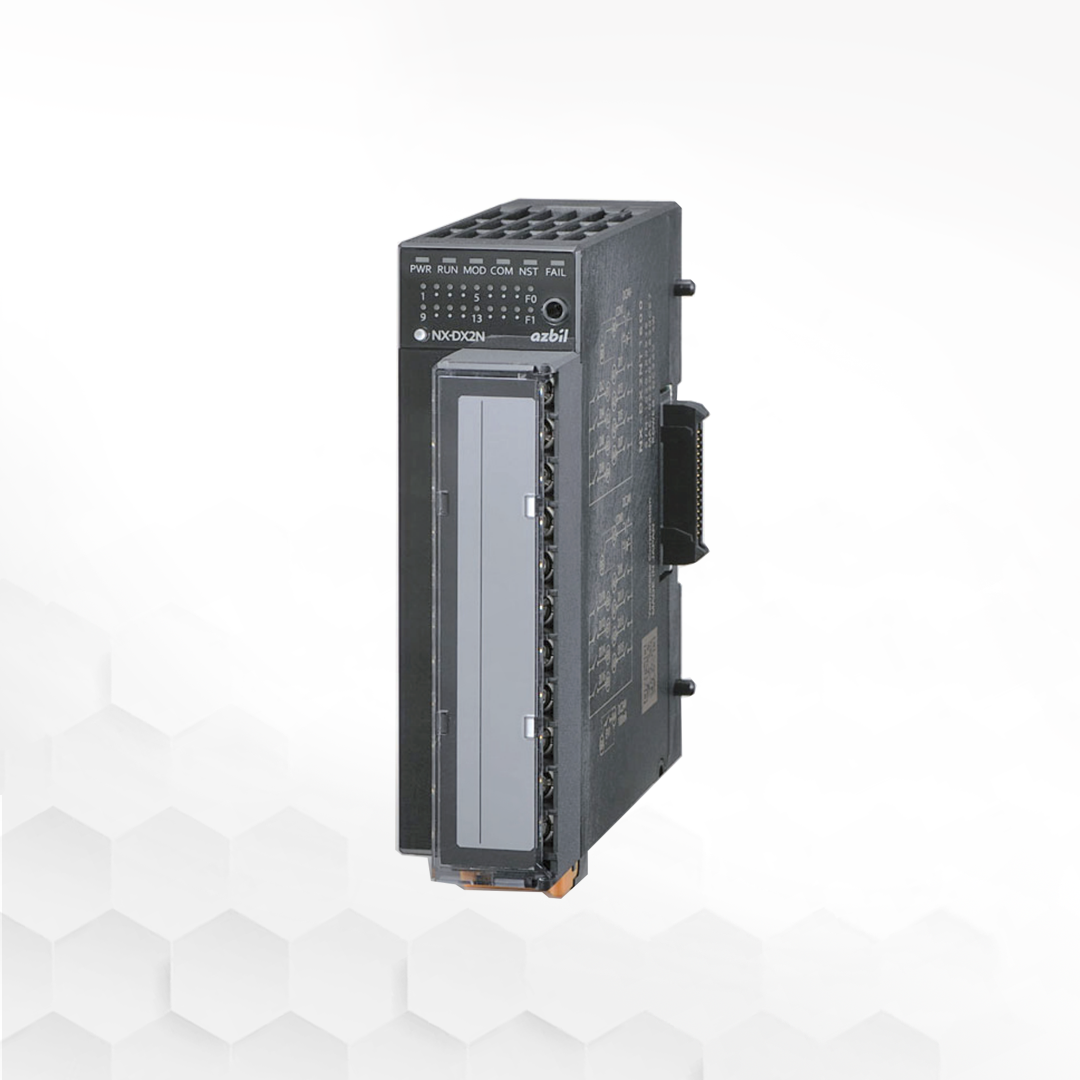

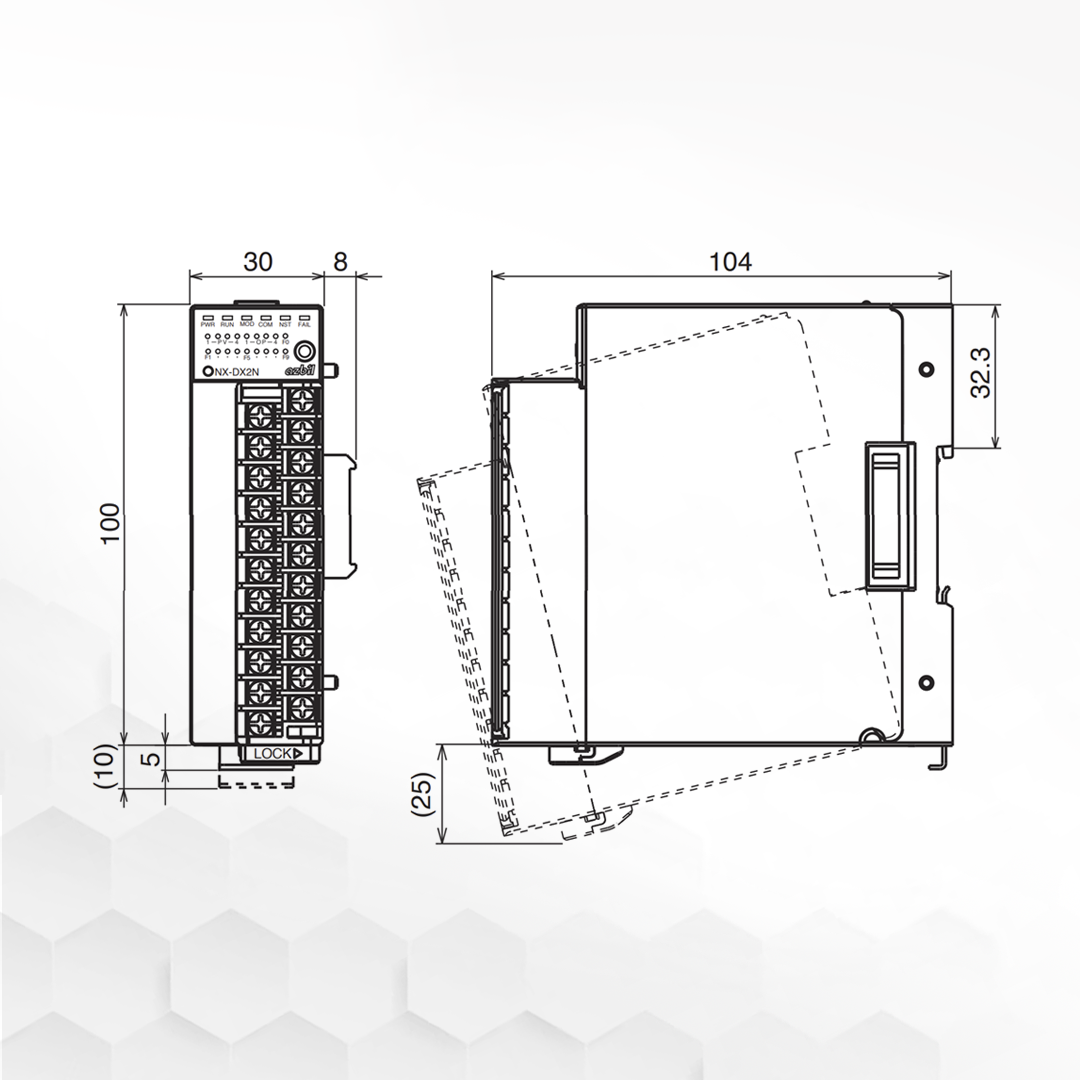

- Network Instrumentation Module
- 16 digital inputs per module for precise data acquisition
- High-speed (5 kHz) & low-speed (100 Hz) pulse input support
- Nonvolatile memory backup (NX-DX2) for data retention
- Event output function (NX-DX2) for triggered operations
- DIN rail mounting for secure installation
- 24 Vdc power supply, 4W max. consumption
- Operating temperature: 0 to 50°C
- Lead times for non-stocked items are generally 6-8 weeks. For urgent needs, please contact us to explore additional options.
30%
- Max. Pressure: 24.5 MPa (3550 PSI)
- Flow Range: 0.3–2 L/min
- Pressure Adj.: 0.5–24.5 MPa
- Low hysteresis (≤3%) & high repeatability (±1%)
- Coil Resistance: 10 Ω
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please contact us to explore additional options.
30%
- Pilot Operated Directional Valve
- Precise flow management under high-pressure conditions.
- Versatile Configurations: Spring-centered, pressure-centered, no-spring, and spring-offset models.
- ISO 4401-compliant with options like built-in orifices and stroke adjustments.
- Valve Sizes: DHG-04, DHG-06, DHG-10; Max Pressure: 31.5 MPa (4,570 PSI)
- Flow Rates: Up to 1,100 L/min (291 GPM)
- Ideal for manufacturing, construction, and energy industries.
- Enhanced Reliability: Seal kits and pilot choke valves extend lifespan and functionality
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please get in touch with us to explore additional options.
5%
- Network Instrumentation Module
- Connectivity: Ethernet & RS-485; daisy-chain wiring.
- Control: Up to 4 loops; 2-loop/cascade control; heat/cool control.
- Inputs: Thermocouple, RTD, DC current/voltage.
- Sampling: 500 ms (NX-D15), 200 ms (NX-D25), 100 ms (NX-D35).
- Accuracy: ±0.1% FS and ±0.3% FS.
- Outputs: 4 transistor outputs (100 mA max).
- Design: Side connectors; 3-part structure; real-time monitoring with SLP-NX
30%

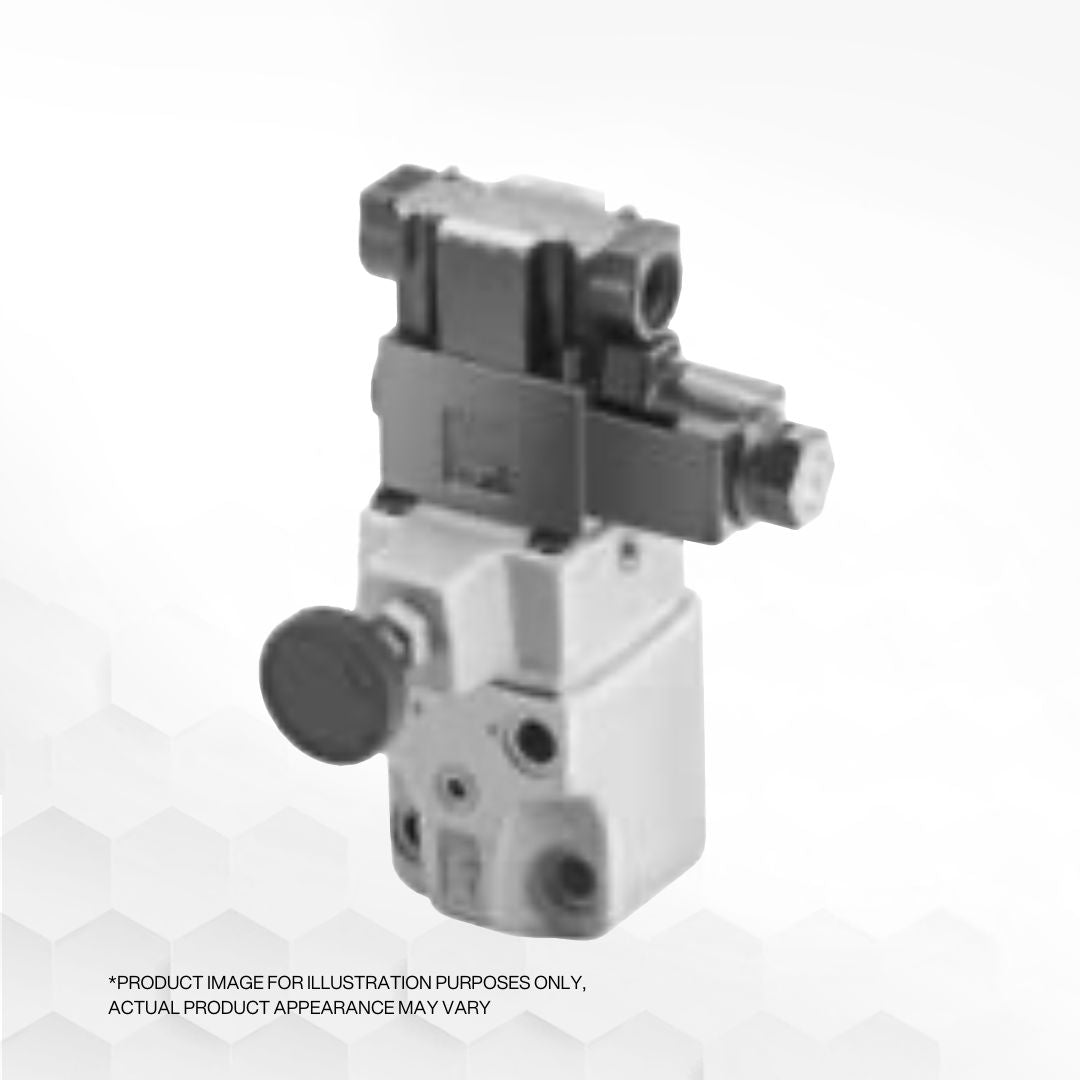

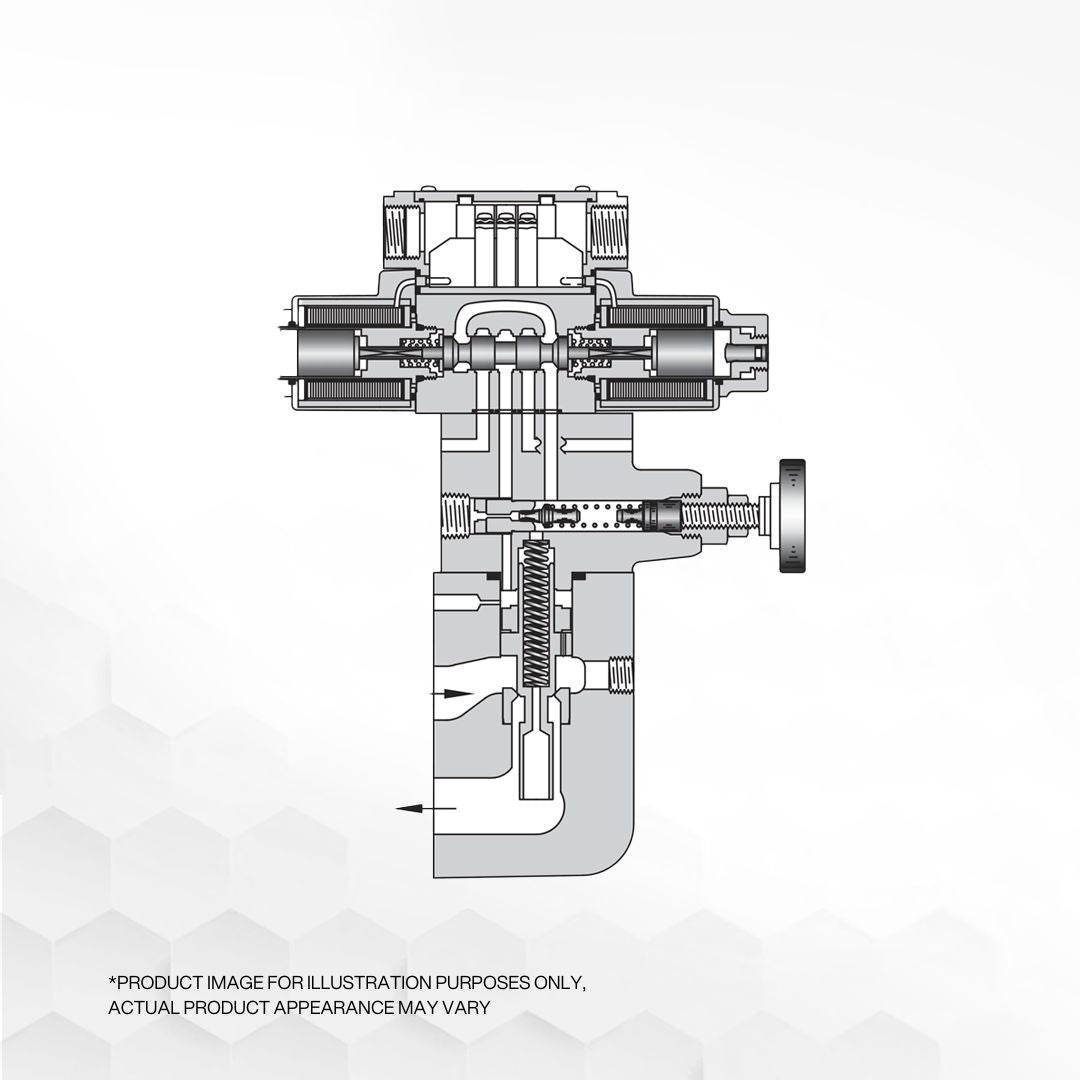

- Solenoid Controlled Relief Valve
- Combines a pilot-operated relief valve and solenoid valve for compact hydraulic control.
- Eliminates external piping, simplifying installation and reducing leak points.
- Allows remote pump pressure unloading via electrical signals or pilot relief valves.
- Optional vent restrictor minimizes pressure shocks for smoother operation.
- Handles up to 25 MPa (3630 PSI) for demanding industrial environments.
- Pressure adjustment ranges: 100 MPa (Model 03), 200 MPa (Model 06), 400 MPa (Model 10).
- Vent restrictor types: 2B3A and 2B3B.
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please get in touch with us to explore additional options.
30%
- Solenoid Controlled Relief Valve
- Combines a pilot-operated relief valve and solenoid valve for compact hydraulic control.
- Eliminates external piping, simplifying installation and reducing leak points.
- Allows remote pump pressure unloading via electrical signals or pilot relief valves.
- Optional vent restrictor minimizes pressure shocks for smoother operation.
- Handles up to 25 MPa (3630 PSI) for demanding industrial environments.
- Pressure adjustment ranges: 100 MPa (Model 03), 200 MPa (Model 06), 400 MPa (Model 10).
- Vent restrictor types: 2B3A and 2B3B.
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please get in touch with us to explore additional options.
