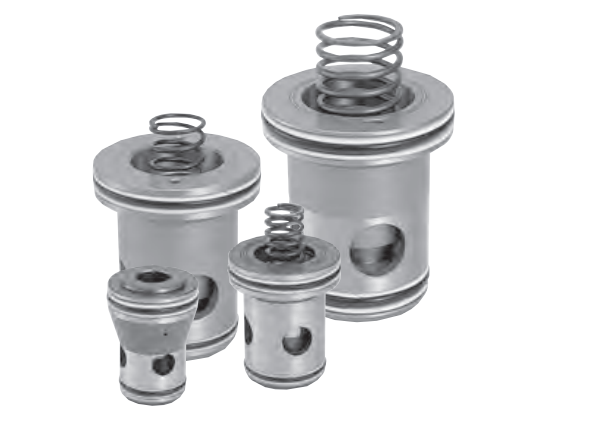

CVI - Cartridge Valve Inserts - CVI-25-D11-3-M-10-JA

Note - All standard options are omitted from the product model number.

Hydraulic fluid

• Standard - mineral oil-based fluid, water glycol-based fluid
• F3 - Phosphate ester-based fluid

Size - 16, 25, 32, 40, 50, 63, 80

Function

• Normally closed
  • D10 - Area ratio 1:1
  • D11 - Area ratio 1:1.1
  • D15 - Area ratio 1:1.5
  • D20 - Area ratio 1:2
• Normally closed with notch
  • F - Area ratio 1:2
  • F15 - Area ratio 1:1.5
• Normally open
  • OD17 - Area ratio 1:1.7

Cracking pressure

• L
  • D10
    • A to B - 0.03 MPa
  • D11
    • A to B - 0.03 MPa
    • B to A - 0.27 MPa
  • D15
    • A to B - 0.04 MPa
    • B to A - 0.08 MPa
  • D20
    • A to B - 0.05 MPa
    • B to A - 0.05 MPa
  • F
    • A to B - 0.05 MPa
    • B to A - 0.05 MPa
  • F15
    • A to B - 0.04 MPa
    • B to A - 0.08 MPa
  • M
    • D10
      • A to B - 0.13 MPa
    • D11
      • A to B - 0.14 MPa
      • B to A - 1.4 MPa
    • D15
      • A to B - 0.19 MPa
      • B to A - 0.37 MPa
    • D20
      • A to B - 0.25 MPa
      • B to A - 0.25 MPa
    • F
      • A to B - 0.25 MPa
      • B to A - 0.25 MPa
    • F15
      • A to B - 0.19 MPa
      • B to A - 0.37 MPa
    • H
      • D10
        • A to B - 0.25 MPa
      • D11
        • A to B - 0.27 MPa
        • B to A - 2.7 MPa
      • D15
        • A to B - 0.37 MPa
        • B to A - 0.75 MPa
      • D20
        • A to B - 0.5 MPa
        • B to A - 0.5 MPa
      • F
        • A to B - 0.5 MPa
        • B to A - 0.5 MPa
      • F15
        • A to B - 0.37 MPa
        • B to A - 0.75 MPa
