TOKYO KEIKI

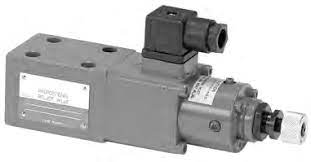

EPCGL-06-A-10-Y-12 - Direct Operated Proportional Solenoid Relief Valve - EPCGL Series - 48245767
Product SKU: 48245767
- Utilizes a proportional solenoid actuator to provide proportional control of hydraulic circuit pressure.
- The valve provides pressure control proportional to input current by connecting with small flow hydraulic systems, pilot operated pressure control valves or variable displacement pumps.
Take control of your hydraulic system with the EPCGL-06-A-10-Y-12 proportional solenoid relief valve from
Tokyo Keiki (formerly Tokimec)!
Featuring high response, linear characteristics, anti-contamination, and a manual setting mechanism, this
valve is the perfect choice for keeping your system running with minimal noise and maximum efficiency.
-
The EPCG3 series proportional solenoid control relief valve provides proportional pressure control in a
hydraulic circuit by using a proportional solenoid for the electromechanical actuator. -
The manual setting mechanism eliminates need for electrical input during maintenance inspections.
-
Low noise type main body will reduce the noise level of the hydraulic system.
Performance
Notes on Use
- Air Bleed
- For stable pressure control, during the initial adjustment, loosening the
air bleed plug and bleed air completely out of the valve prior to use. - Manual adjustment
- In case of initial adjustment or during electrical failures, etc., when there is
no input electrical current, pressure can be set manually with the pressure
adjustment knob. Turn knob fully counterclockwise again for use during
electro-magnetic control. - Minimum control flow
- When flow is small, setting pressure may be unstable. Please maintain
minimum flow above 0.3L/min. - T port piping
- Allowable back pressure is 0.2MPa. T port piping should be returned
directly to tank, and the end of the pipe should be below the lowest fluid
level.
