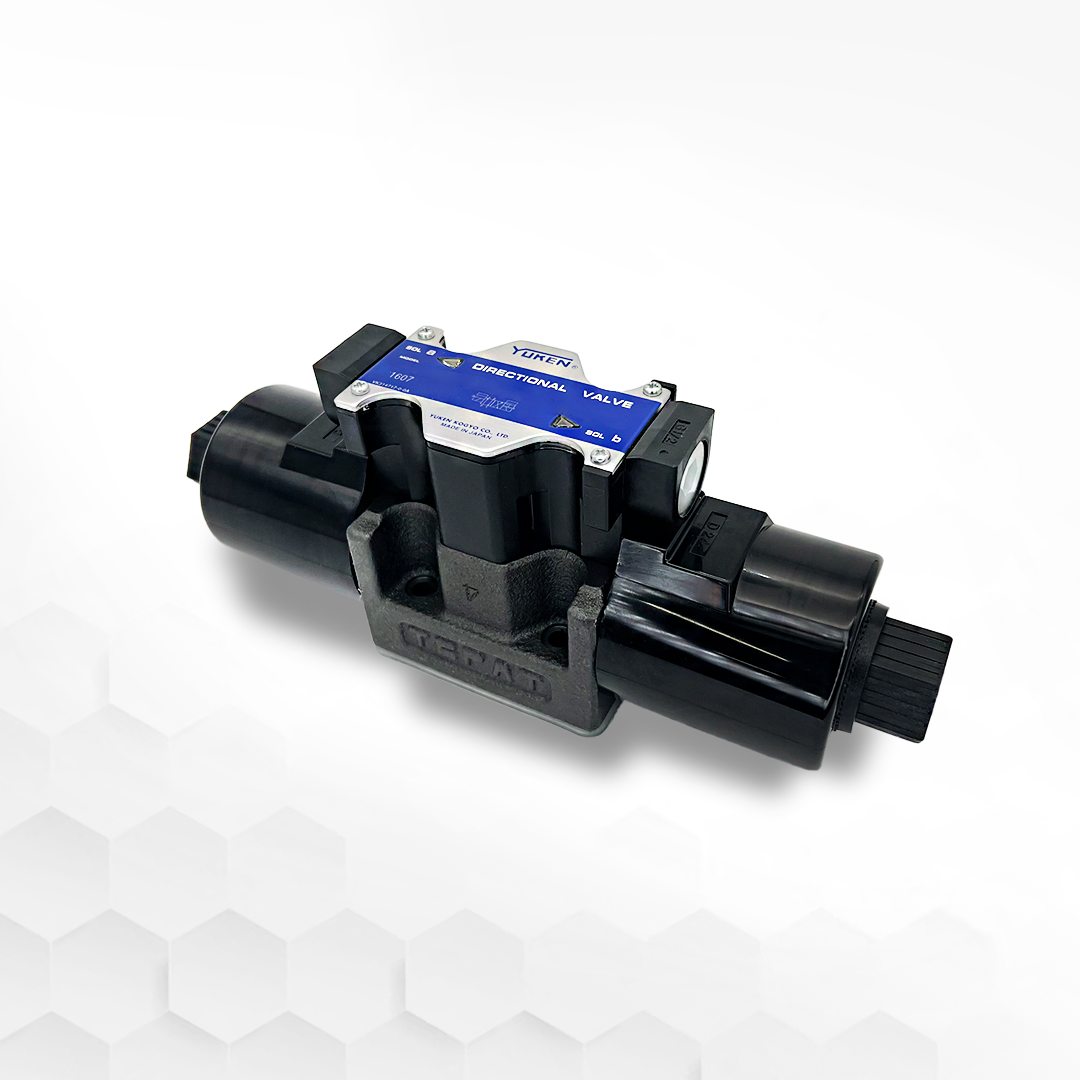

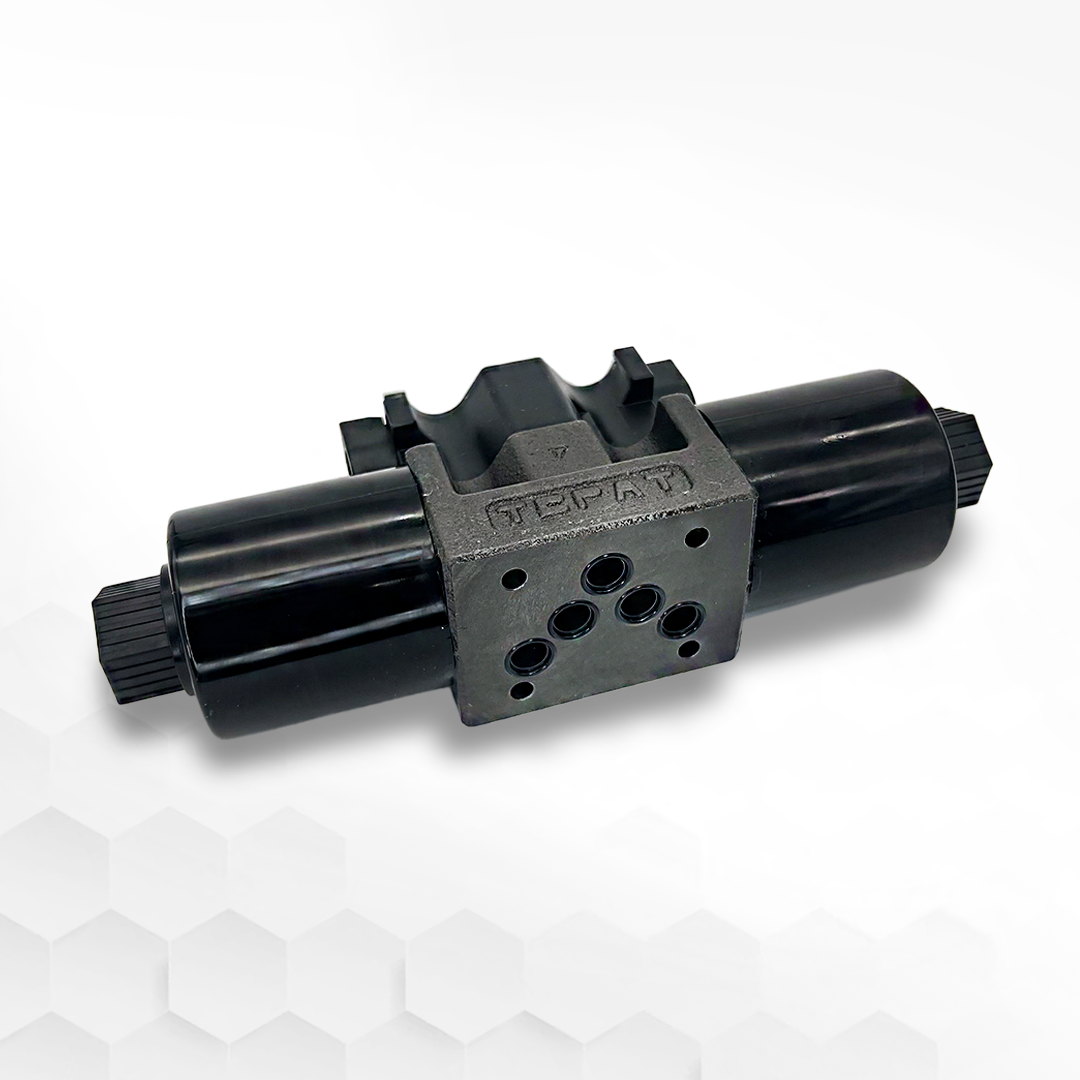

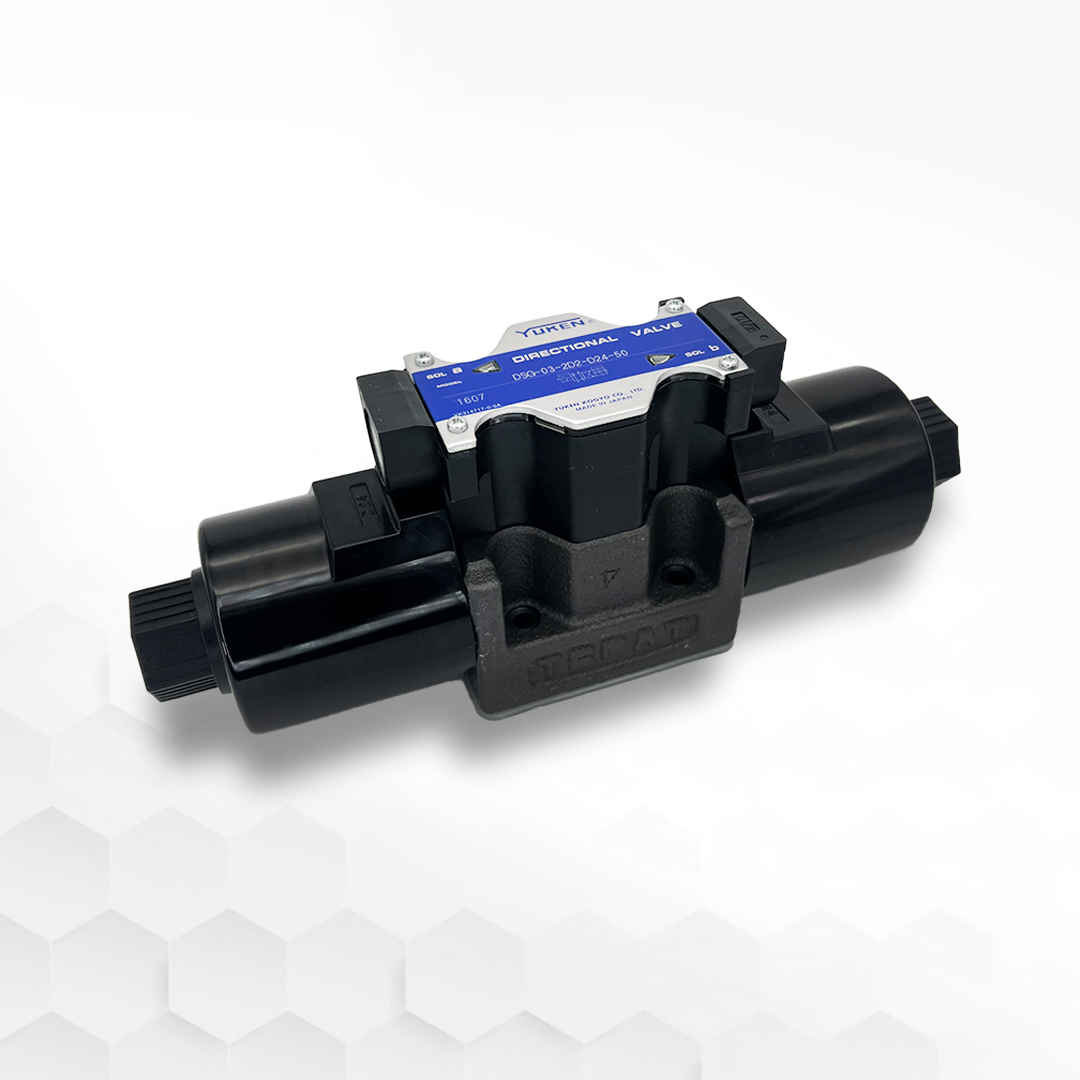

DSG-03-2D2-D24D110-N1-50 | Solenoid Operated Directional Valve
- Solenoid Operated Directional Valve
- High-pressure, high-flow hydraulic valve
- Flow Rates: Standard/Shockless: 120 L/min; Low Wattage: 60 L/min
- Max Pressure: Standard: 31.5 MPa; Shockless: 25 MPa; Low Wattage: 16 MPa
- Changeover Frequency: Up to 240 cycles/min
- Features wet-type solenoids for quiet operation
- Certified to CE, UL, and CSA standards
- Shockless operation reduces noise and vibration
- Lead times for non-stocked items are generally 18-20 weeks. For urgent needs, please get in touch with us to explore additional options.
Introducing the Yuken DSG-03 Series Solenoid Operated Directional Valve engineered for hydraulic systems requiring high pressure and high flow rates. Featuring wet-type solenoids, DG-03 valves ensure quiet operation, long service life, and no oil leakage. With a wide range of models, including standard and shockless types, the DSG-03 Series caters to diverse application needs. provides reliable performance, even in challenging conditions, with the standard models capable of handling pressures up to 31.5 MPa (4570 PSI). The shockless versions are designed to minimize noise during spool changeover, making them ideal for systems that require smoother operations with reduced vibration.
Specifications:
-
Max Flow Rate:
o Standard Type: 120 L/min (31.7 U.S. GPM)
o Shockless Type: 120 L/min (31.7 U.S. GPM)
o Low Wattage Type: 60 L/min (15.9 U.S. GPM) -
Max Operating Pressure:
o Standard Type: 31.5 MPa (4570 PSI); Spool Type 60: 25 MPa (3630 PSI)
o Shockless Type: 25 MPa (3630 PSI)
o Low Wattage Type: 16 MPa (2320 PSI) -
Max T-Line Back Pressure:
o Standard, Shockless, and Low Wattage Types: 16 MPa (2320 PSI) -
Max Changeover Frequency:
o Standard Type: 240 cycles/min (R Type Solenoid: 120 cycles/min)
o Shockless Type: 120 cycles/min
o Low Wattage Type: 240 cycles/min (R Type Solenoid: 120 cycles/min)
Upgrade with Yuken DSG-03 Series Solenoid Operated Directional Valve, ensuring compliance with global safety standards for various industrial applications. With its shockless operation option reduces noise and vibration, while stable performance is ensured by the valve’s resistance to contamination. certified to CE, UL, and CSA standards, making it a reliable choice for various industries and operational needs. #SolenoidOperatedDiectionalValve #Yuken #CascadeIndustrial
