- UBGR Series Brake Valve for hydraulic cylinders and hydraulic motor brake circuits.
- Provides smooth, controlled braking and precise pressure regulation.
- Sub-plate mounting design for reliable industrial hydraulic applications.
- Maximum operating pressure: 25 MPa (3630 PSI).
- Pressure adjustment ranges: 0.7–7 MPa, 3.5–25 MPa, and 0.7–25 MPa.
- Flow capacities up to 200 L/min (52.8 GPM).
- Available in A-Line, B-Line, and A&B-Line configurations.
- Ideal for automation, mobile machinery, and hydraulic power units.

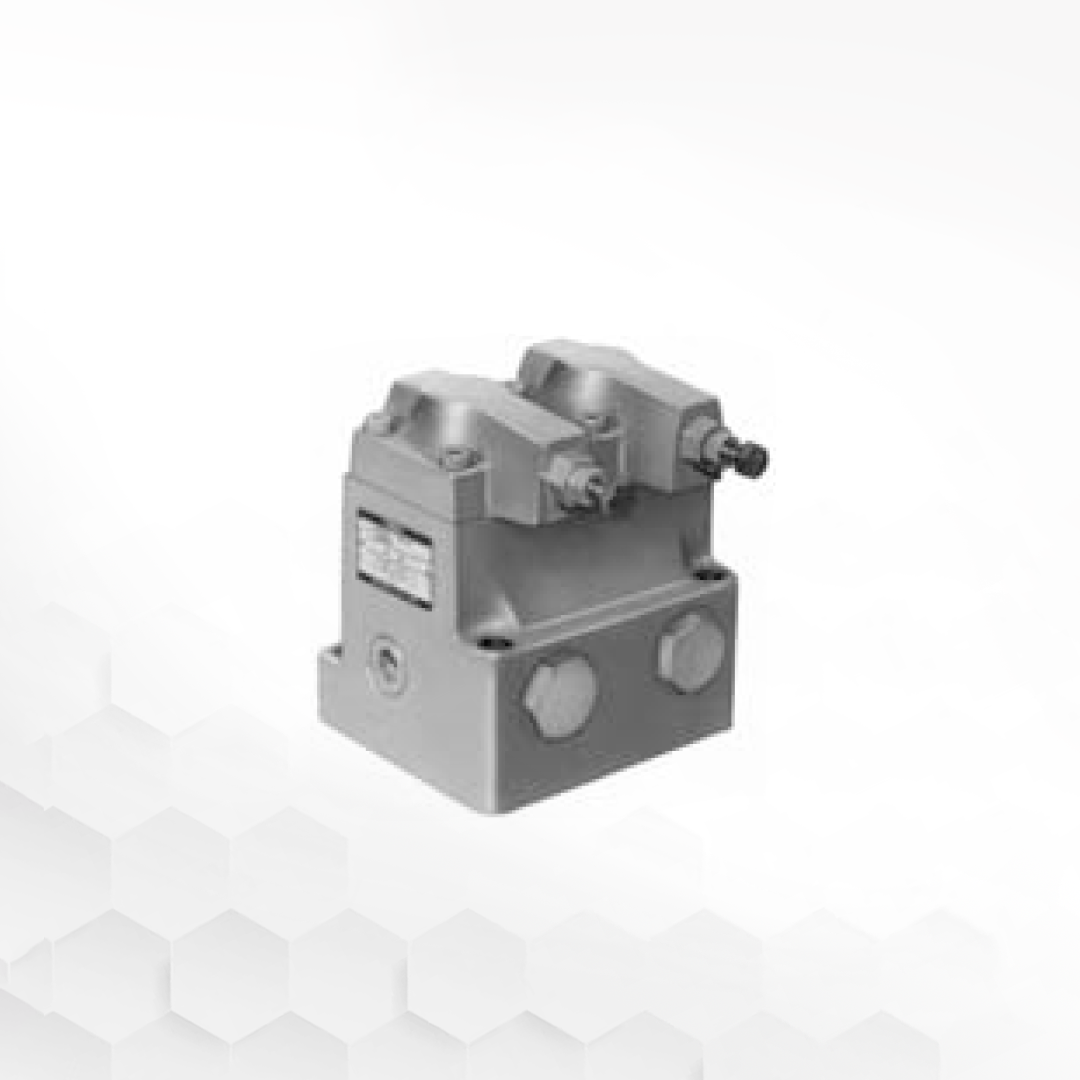

The Yuken UBGR Series Brake Valve is a high-performance hydraulic pressure control valve designed for use in hydraulic cylinders and brake circuits of hydraulic motors. Engineered to provide controlled braking at any pressure level, the UBGR Series ensures smooth stopping, enhanced safety, and improved system stability in industrial and mobile hydraulic applications.
Featuring a robust sub-plate mounting design, the UBGR brake valve offers precise pressure adjustment and dependable performance under demanding operating conditions. With multiple valve sizes and flow capacities available, the series can be tailored to suit a wide range of hydraulic systems requiring efficient motion control and braking functionality.
Specifications:
- Series: Yuken UBGR Brake Valve
- Mounting Type: Sub-plate mounting
- Maximum Operating Pressure: 25 MPa (3630 PSI)
- Pressure Adjustment Range:
- 0.7–7.0 MPa (100–1020 PSI)
- 3.5–25 MPa (510–3630 PSI)
- 0.7–25 MPa (100–3630 PSI)
- Available Valve Sizes: 03, 06, 10
- Maximum Flow Capacity:
- Size 03: 50 L/min (13.2 U.S. GPM)
- Size 06: 125 L/min (33.0 U.S. GPM)
- Size 10: 200 L/min (52.8 U.S. GPM)
- Available Types:
- A: For A-Line
- B: For B-Line
- W: For A & B Lines
- Special Seal Option: Phosphate ester fluid compatible
- Design Standards:
- Japanese Industrial Standard (JIS)
- European Standard
- ANSI (Design No. 90)
The Yuken UBGR Series Brake Valve is an ideal solution for industrial machinery, mobile equipment, hydraulic power units, and automation systems requiring reliable braking and pressure control. Its durable construction, flexible configuration options, and accurate pressure regulation help improve system safety, operational efficiency, and overall hydraulic performance. #BrakeValve #Yuken #CascadeIndustrial
