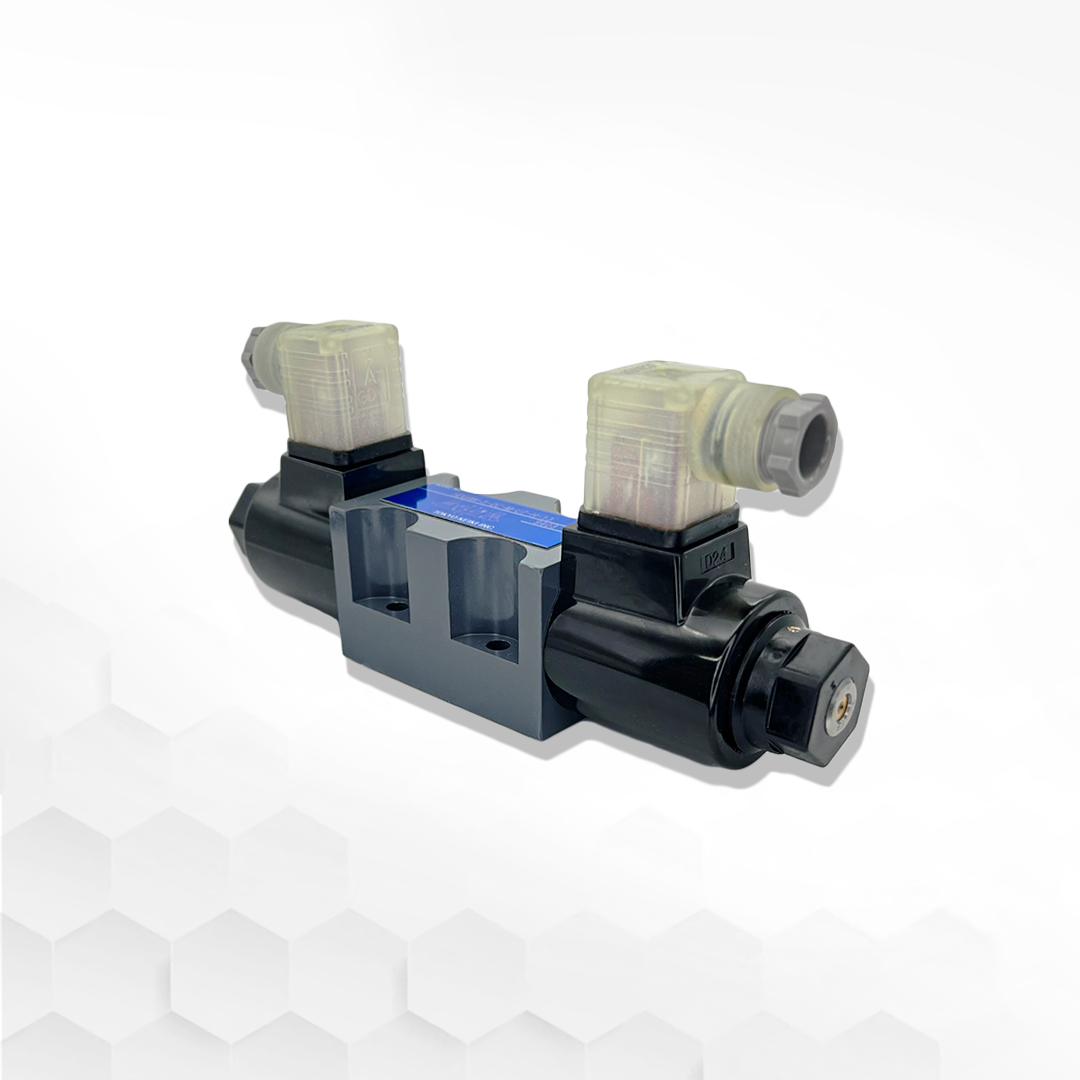

HDG4W-3-0C-M-U7-H-13 | High Pressure Solenoid Valve

The Tokyo Keiki HDG4W-3 Series High Pressure Solenoid Valve engineered for precision and durability in demanding industrial applications. Designed for efficient flow control, this 3-position valve features a spring-centered spool and integrated surge protection. Ideal for machine tools, industrial automation, and mobile hydraulics, it delivers fast switching, low internal leakage, and reliable operation under extreme pressure.

Specifications:

• Mounting Interface: ISO 4401-03 / CETOP 3
• Function: 3-position, spring return (spool type 0C)
• Voltage: DC 24V (Range: 21.6 – 26.4V)
• Power Consumption: 28W
• Current Draw: 1.16A
• Built-in Surge Killer: Diode type
• Connector Type: DIN 43650 (with light and surge protection)
• Switching Time: ~35 ms
• Max Operating Pressure: 68.6 MPa (700 bar)
• Max Flow Rate: 40 L/min
• Tank Port Back Pressure: Up to 20 MPa
• Fluid Compatibility: Mineral oil (ISO VG32 recommended)
• Viscosity Range: 10–400 mm²/s
• Operating Temp: -20°C to +70°C
• Filtration: 25 µm absolute or better
• Internal Leak Rate: ≤1 L/min @ 68.6 MPa
• Mounting Bolts: M6 × 40 (4 pcs), torque 12–15 Nm


Upgrade with Tokyo Keiki HDG4W-3 Series High Pressure Solenoid Valve ensures superior control, long service life, and seamless integration into compact hydraulic circuits. Ideal for OEMs and retrofit projects alike. #SwitchingValve #TokyoKeiki #CascadeIndustrial
